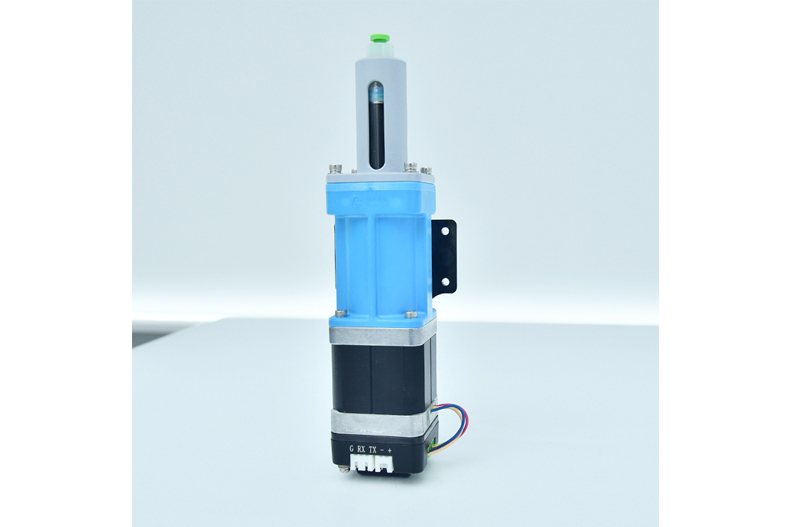

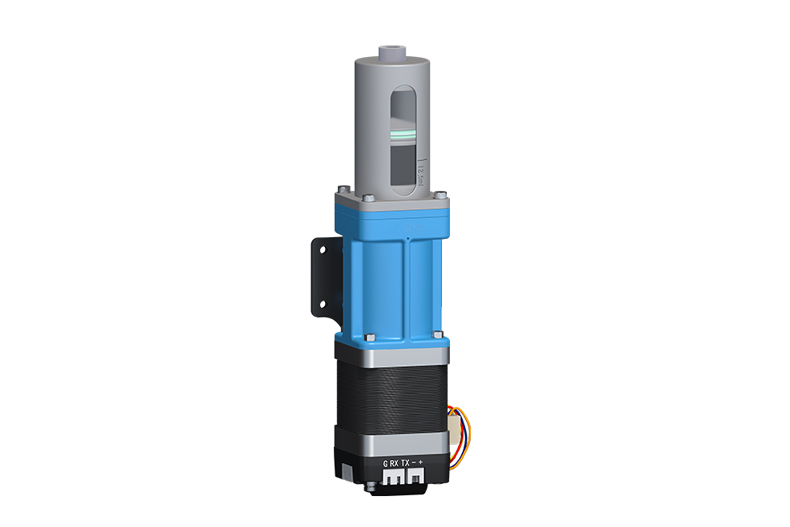

Syringe Pump SY-08

Name: Syringe Pump SY-08
Brand: Nanjing Runze Fluid Control Equipment Co., LTD.

Video of Syringe Pump SY-08

Model Numbers of Syringe Pump SY-08

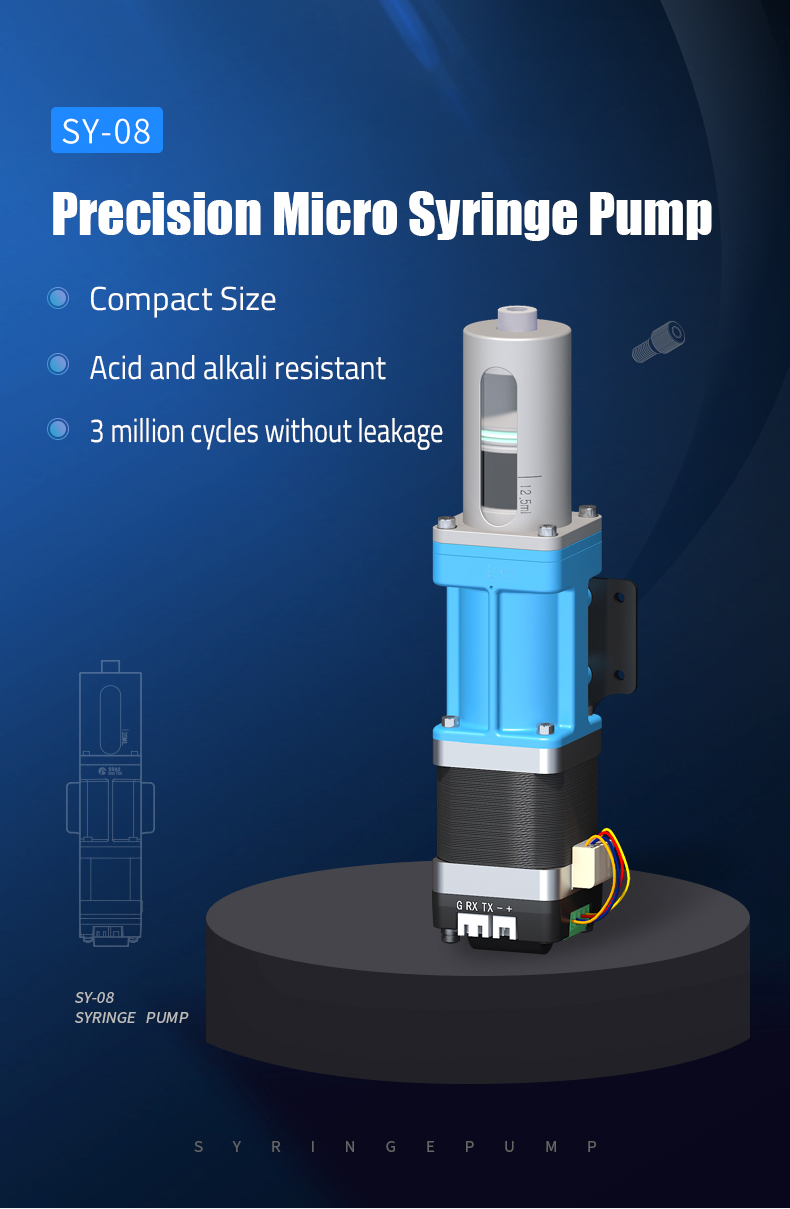

Small compact size, easy mounting, space-saving,long service life Industrial Syringe Pump with high precision in micro-liquid transferring and high performance. Wetted material borosilicate glass and PTFE, corrosion resistance, high temperature resistance, biocompatible and suitable for a variety of special media. Widely used in a variety of analysis equipment such as environmental analysis instruments, medical analysis instruments, non-standard sampling facilities in highprecision, etc.

Peristaltic Pump SY-08

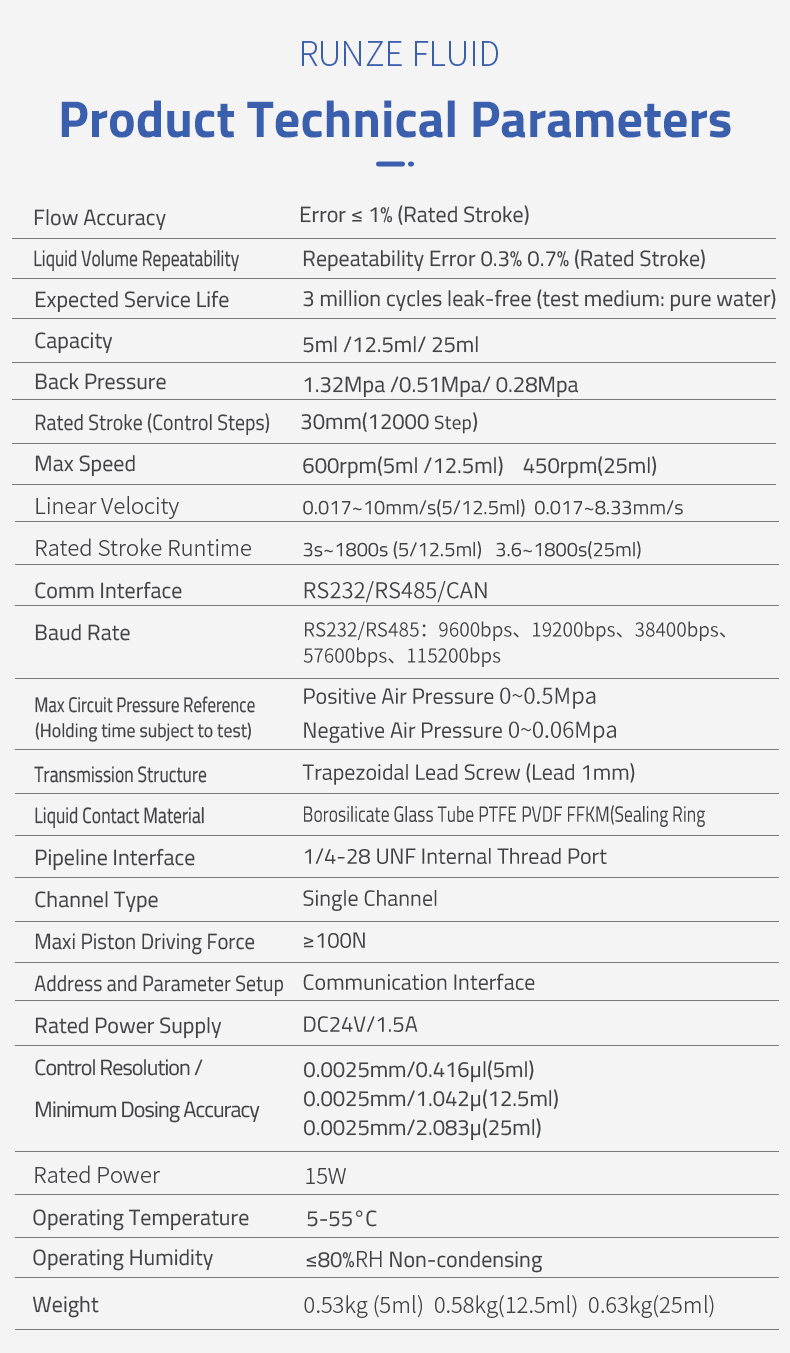

Specification of Syringe Pump SY-08

Accuracy	≤1%@100% (rated stroke)
Precision (Repeatability)	0.3%-0.7%@100% (rated stroke)
Service life	3 million times no leakage (media: water; 1 rated stroke = one time)

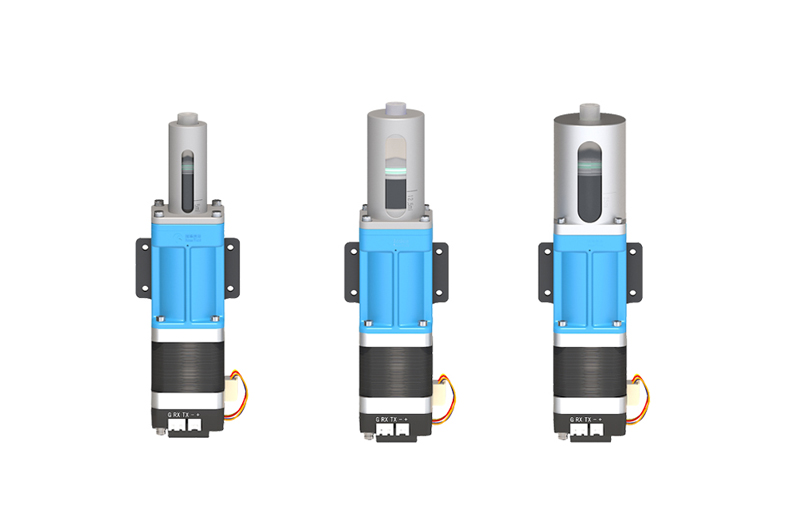

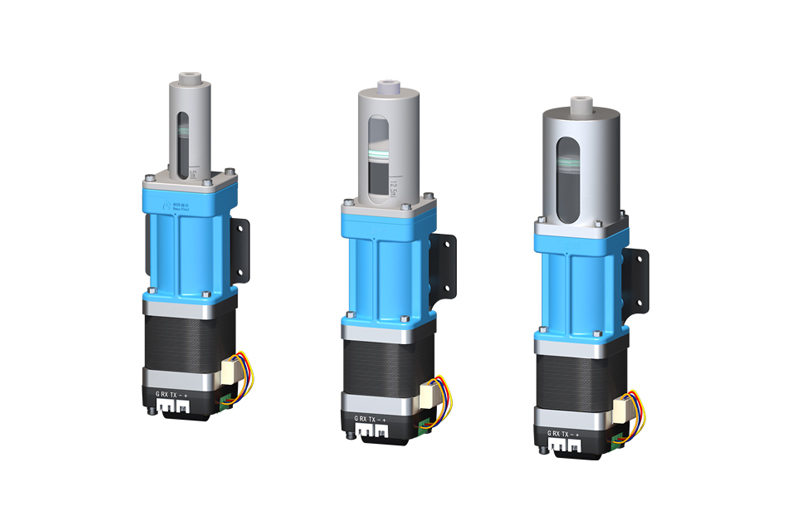

Volume	5ml	12.5ml	25ml
Rated Stroke (control steps)	30mm(12000steps)	30mm(12000steps)	30mm(12000steps)
Maximum speed	600rpm	600rpm	500rpm
Linear speed	0.017-10mm/s	0.017-10mm/s	0.017-8.33mm/s
Running time (per rated stroke)	3-1800s	3-1800s	3.6-1800s

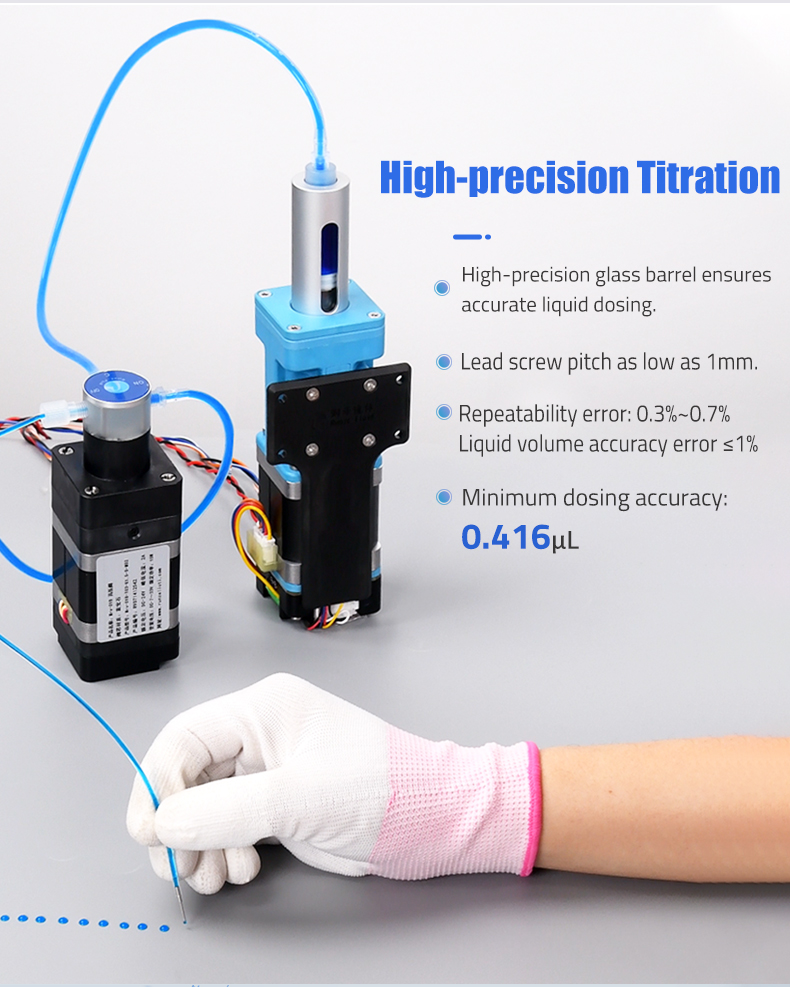

Resolution	0.0025mm/0.416μl	0.0025mm/1.042μl	0.0025mm/2.083μl
Syringe ID	14.55mm	23.03mm	32.57mm
Actuator	Trapezoidal screw (Lead 1mm)
Max. piston drive	≥100N

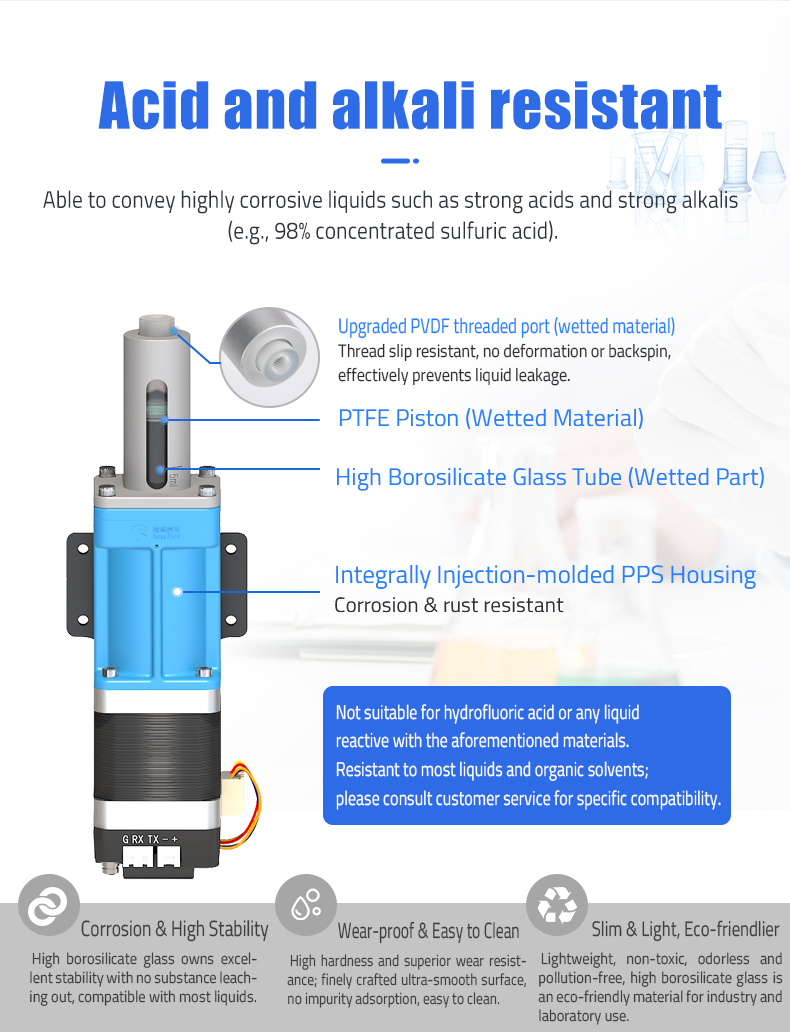

Wetted Material	Borosilicate glass, PCTFE valve head, PTFE piston
Max. Pressure	Positive: 0-0.8Mpa, Negative:0-0.06Mpa, (retention time based on test)
Channel	Single channel
Connection	1/4-28UNF

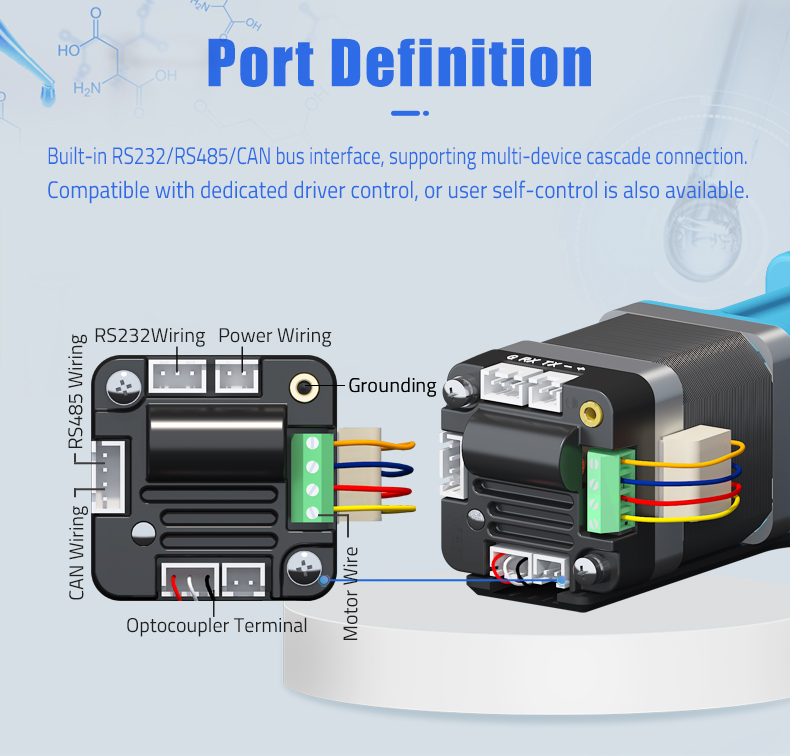

Baud rate	RS232/RS485：9600bps / 19200bps / 38400bps / 57600bps / 115200bps CAN：100Kbps/200Kbps/500Kbps/1Mbps
Address & Parameter setting	Via Communication
Power supply	DC24V/3A
Max Power	15W
Operating temperature	5℃~55℃
Operating humidity	≤ 80% relative humidity, non-condensing

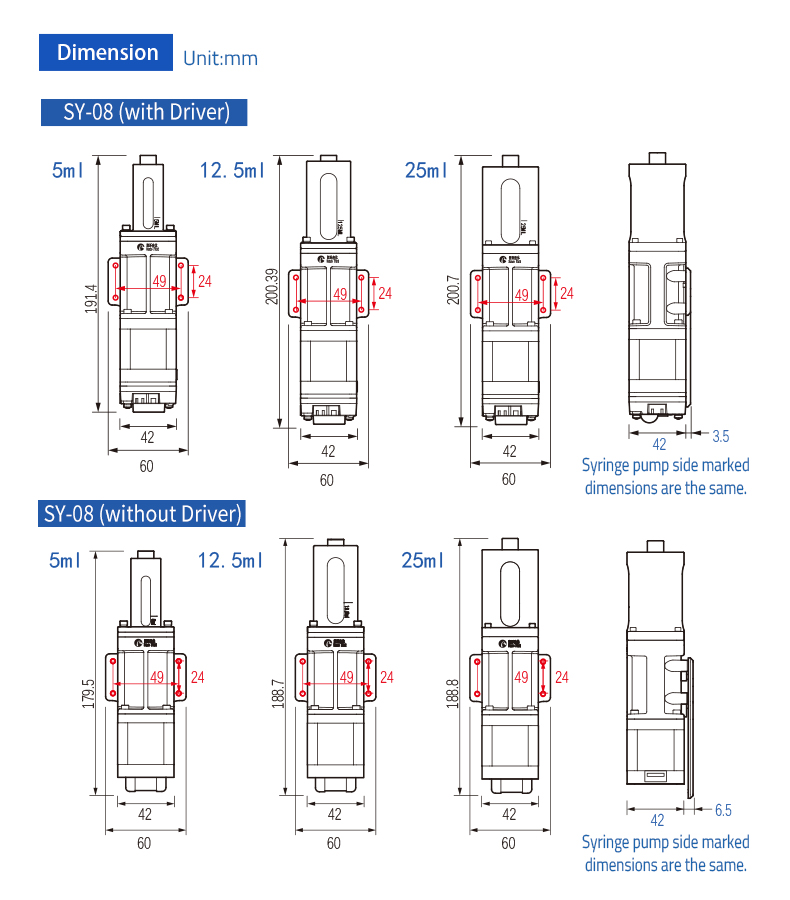

Dimension (LWH)	4242192.8mm	4242201.8mm	4242201.8mm

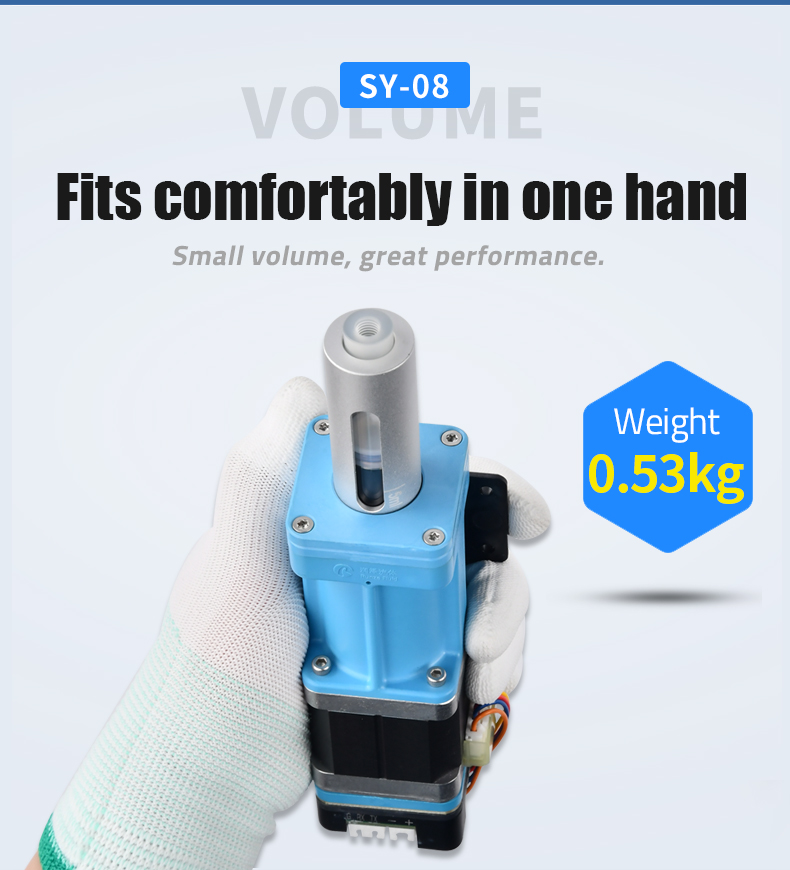

Net Weight	0.56KG	0.62KG	0.66KG
