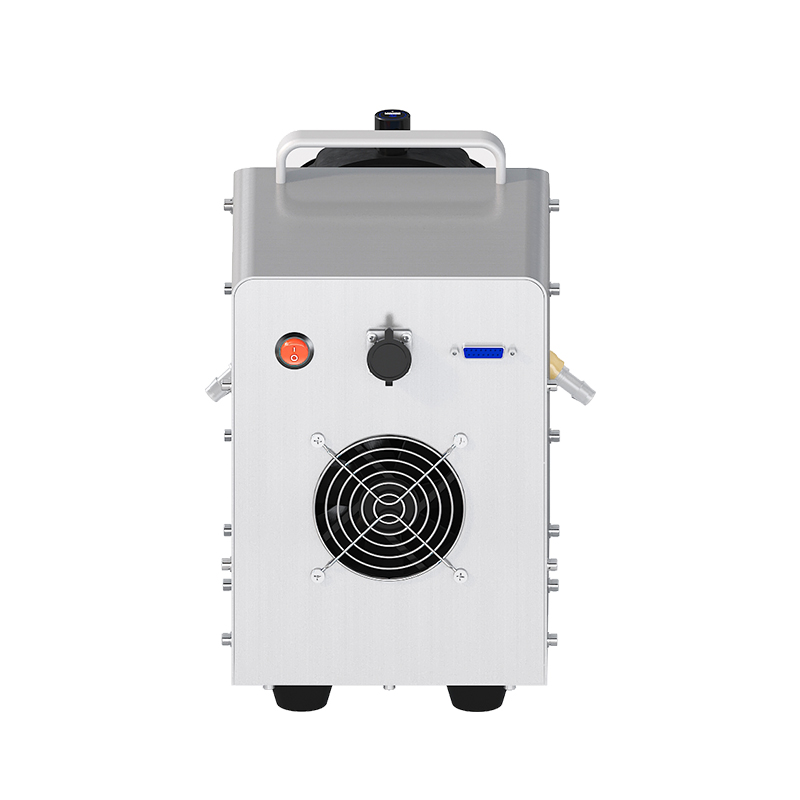

LM80C is a newly developed integrated industrial high flow peristaltic pump, which includes an intelligent control panel to achieve multifunctional control. Typical applications include chemical raw material transportation, reactor feeding, etc.
Model No. | LM80C-RZ35-3H-U |
Speed range | 1rpm~500rpm |
Speed accuracy | 1rpm |
Communication port | RS232/RS485 |
Operating temperature | 0~40℃ |
Operating humidity | ＜80% |
Protection | IP3 |
a. Continuous mode - For continuous liquid transfer with no specific requirements
b. Rationing Mode - Realize one-off liquid dispensing in a specific volume
c. Booking Mode - Realize liquid dispensing in a specific volume at N times
d. Calibration Mode - Proceed calibration model before starting any other working model to ensure high accuracy of the test result
