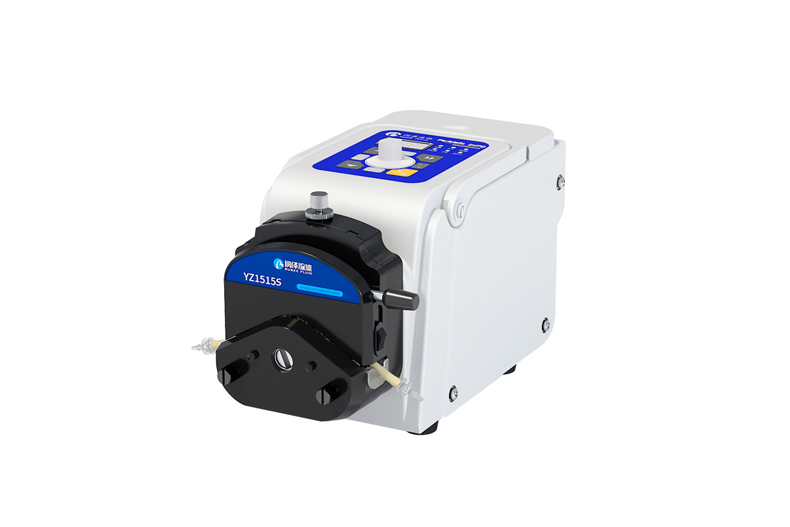

Micro Peristaltic Pump

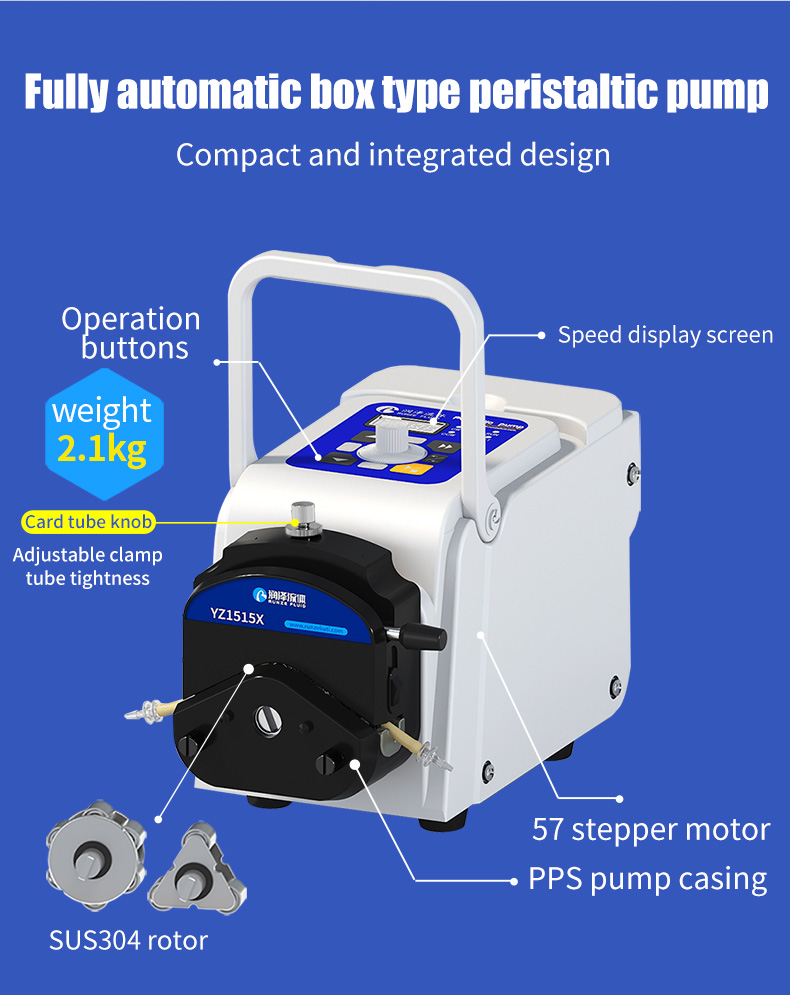

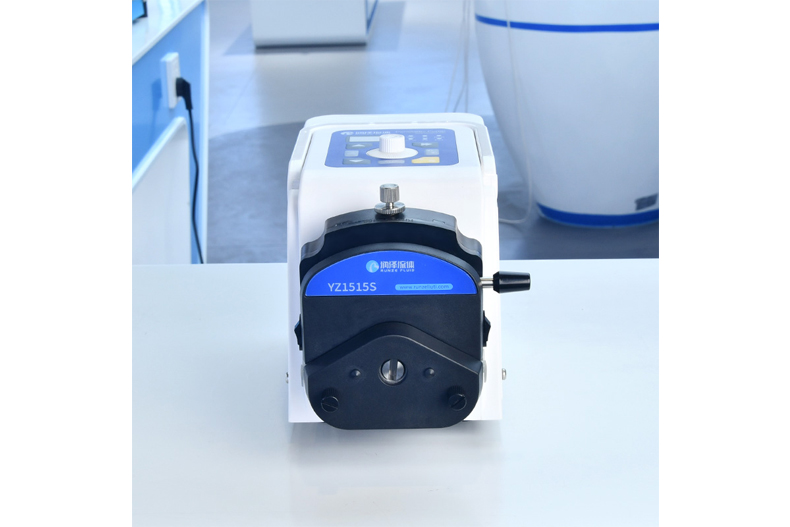

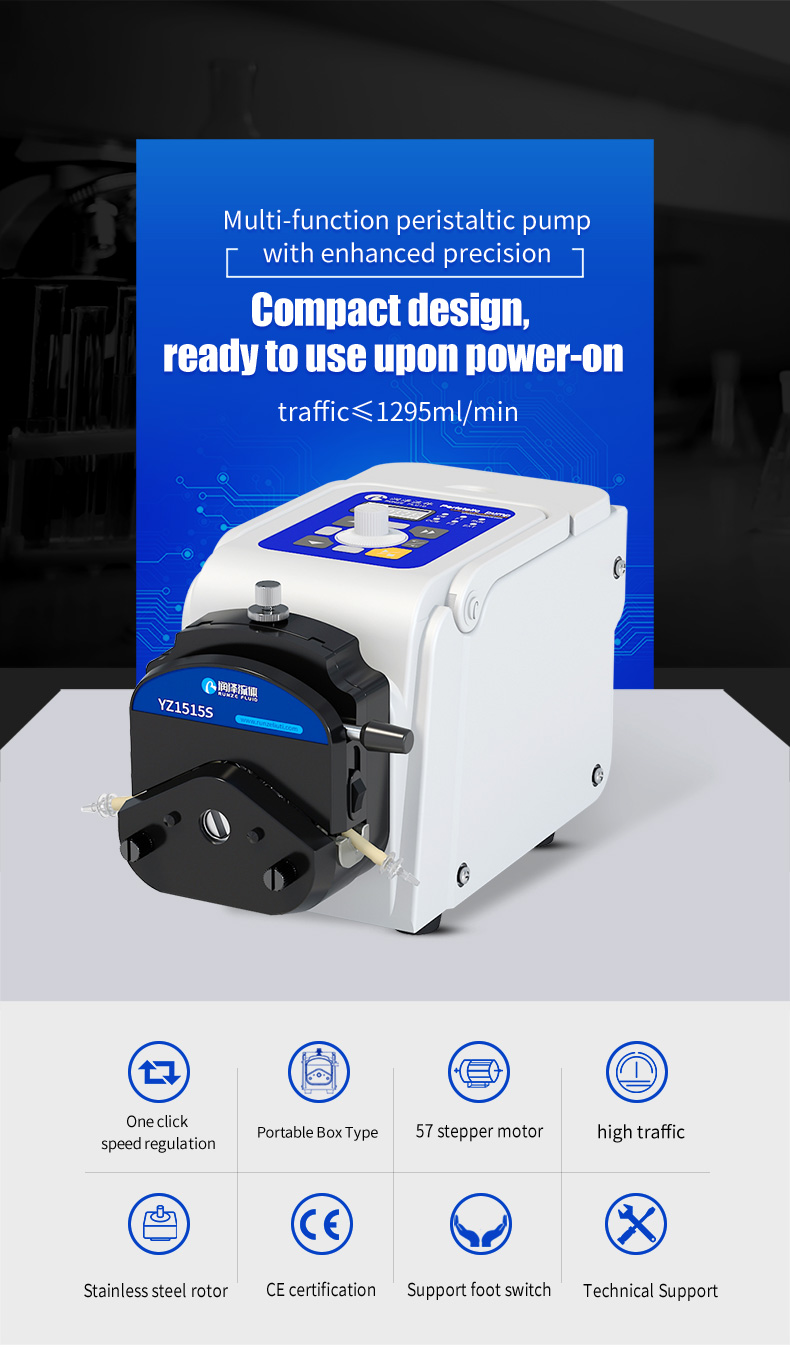

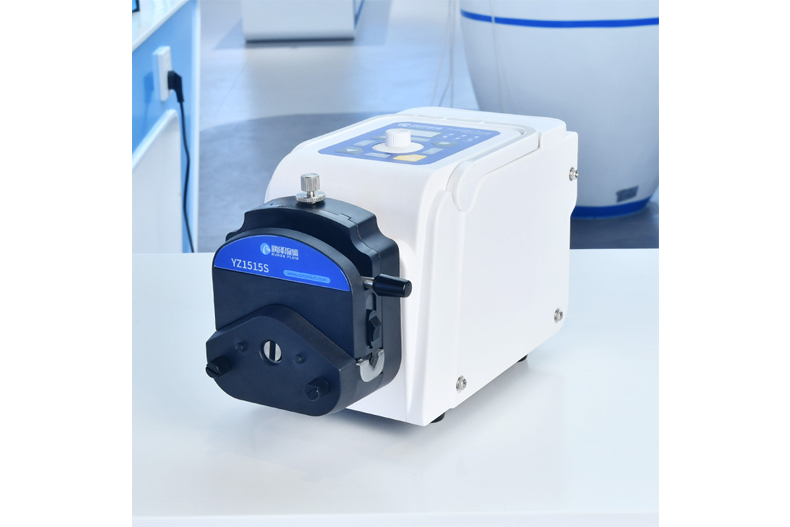

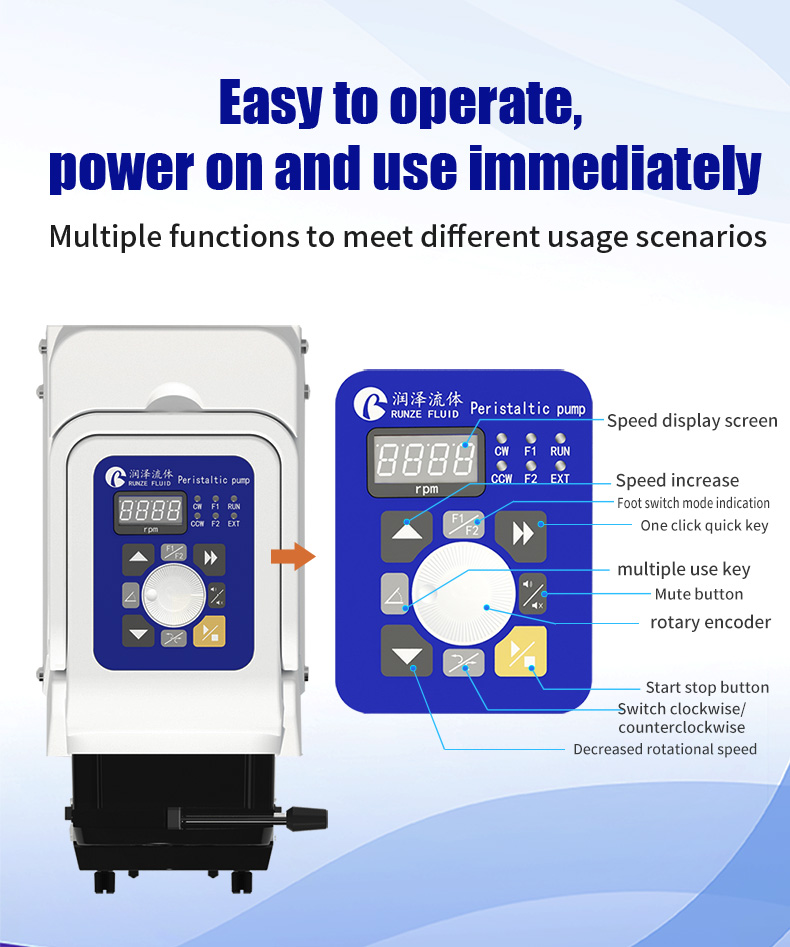

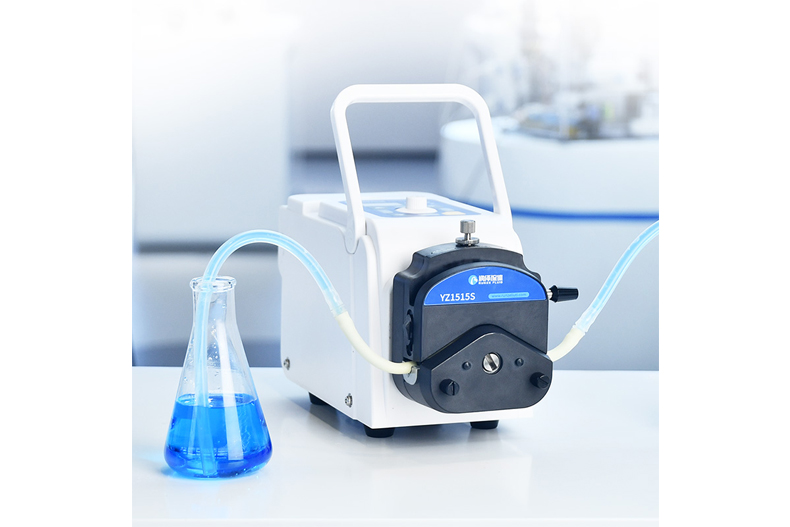

LM40 micro peristaltic pump is a stepper peristaltic pump driven by high precision stepper motor with adjustable speed and flow rate via speed button or rotary encoder, LCD screen display the current working speed to help users flexibly adjust the speed whenever needed, liquid direction can also be adjusted from CW to CCW or from CCW to CW.


  • peristaltic pump design
  • peristaltic pump supplier
  • Micro Peristaltic Pump
  • peristaltic pump design
  • peristaltic pump supplier
  • Micro Peristaltic Pump
Send Mail
Share this product:

Video of Micro Peristaltic Pump

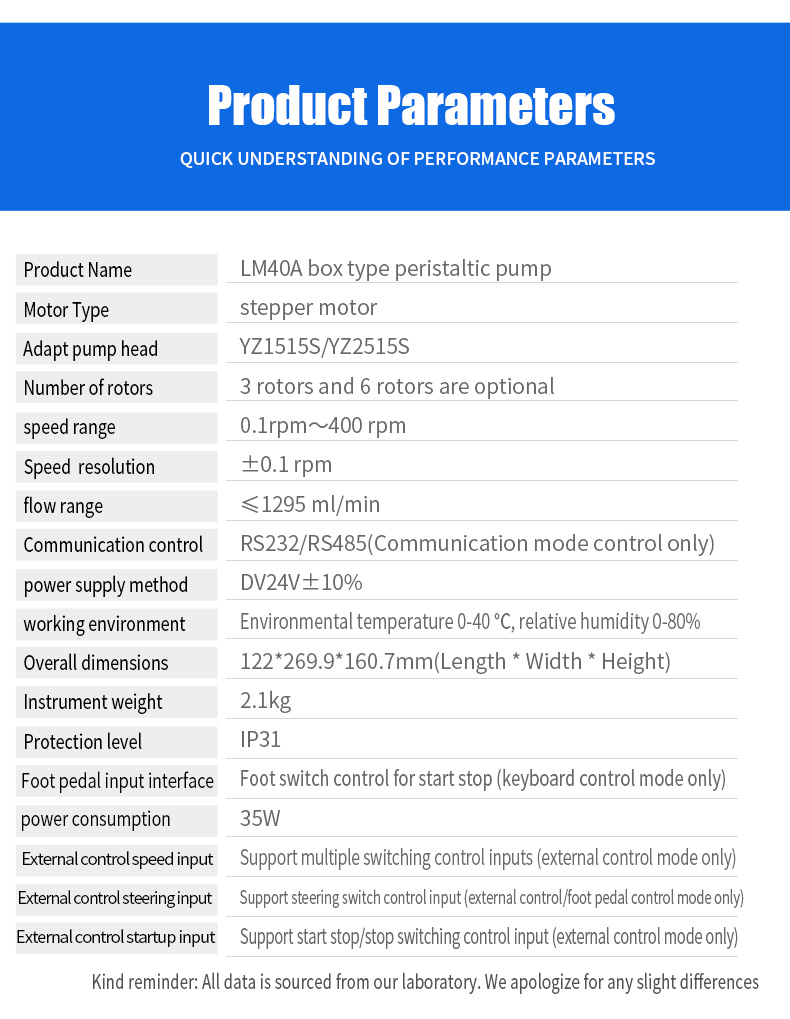

Specification of Micro Peristaltic Pump


Model

LM40A

Speed

0.1RPM ~ 300/400 RPM

Speed resolution

±0.1rpm

Flow range

0.03~117 ml/min

Foot pedal input

Foot switch control start-stop (only the keyboard control mode)

Speed signal input

Multiple speed signal supported (external control mode only)

Direction signal input

Multiple direction signal supported (external control mode only)

ON/OFF signal input

Multiple ON/OFF signal supported (external control mode only)

Communication

RS485 (Communication control mode only)

Power supply

DC24V±10%

Max Power

18W

Working environment

Ambient temperature 0~40℃

Relative humidity<80% non-condensing

Dimension (L*W*H)

173×105×96mm

Net weight

1.45 Kg

Protection level

IP31

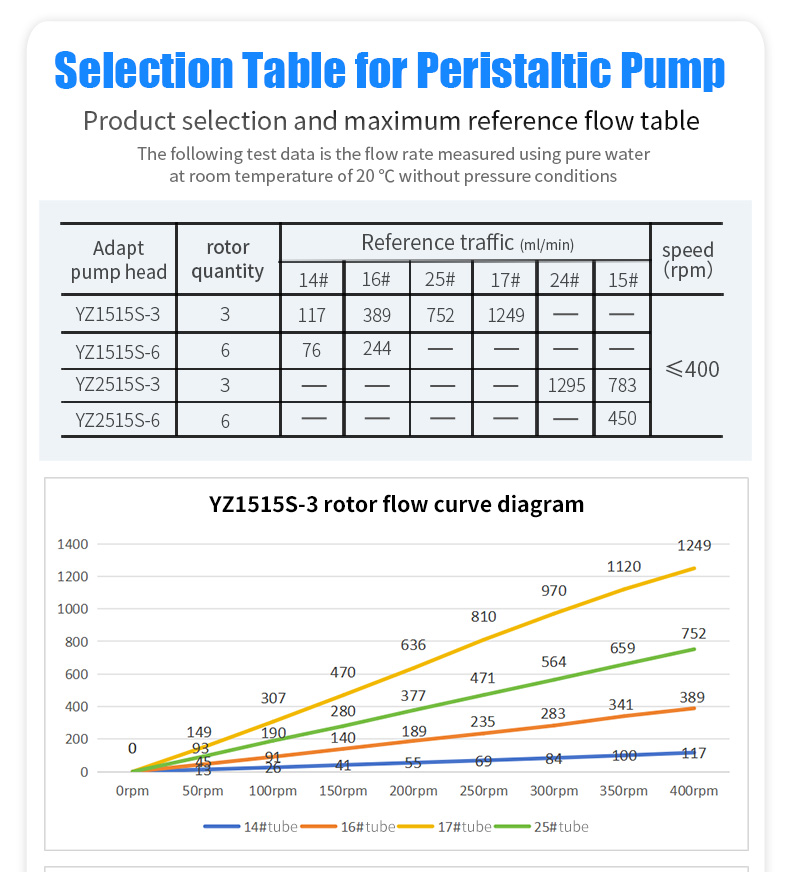

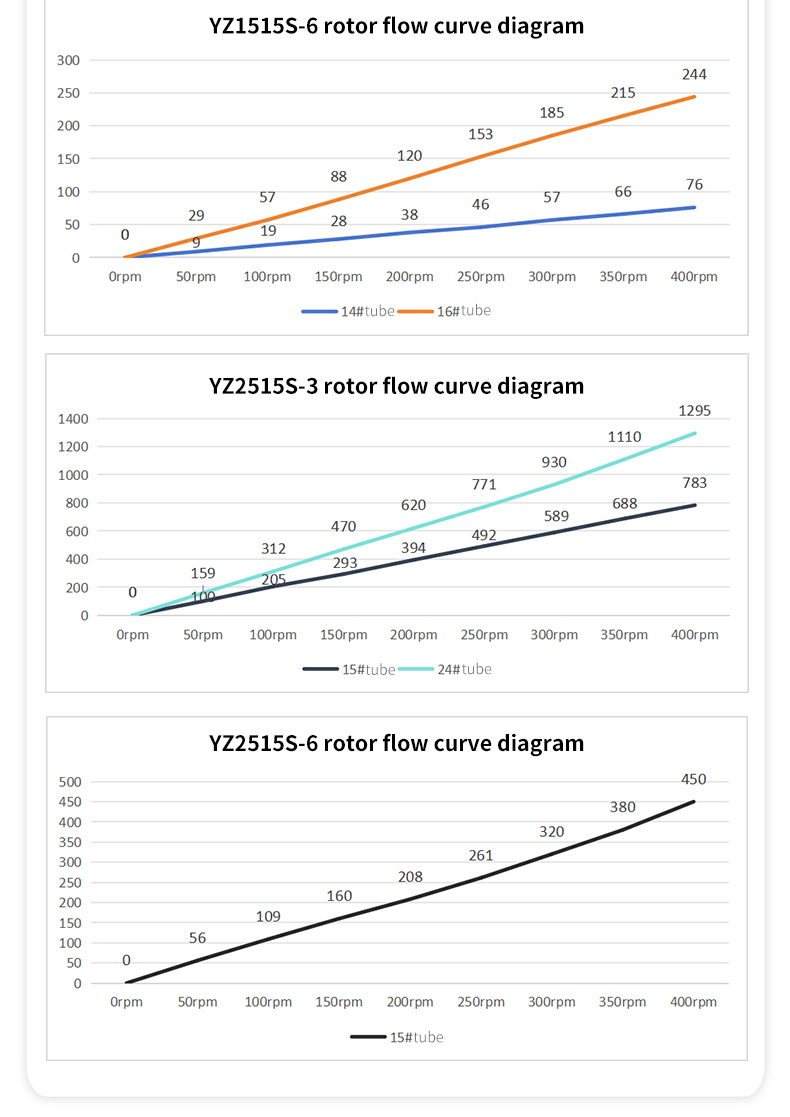

Tubing and Flow Rate of Micro Peristaltic Pump

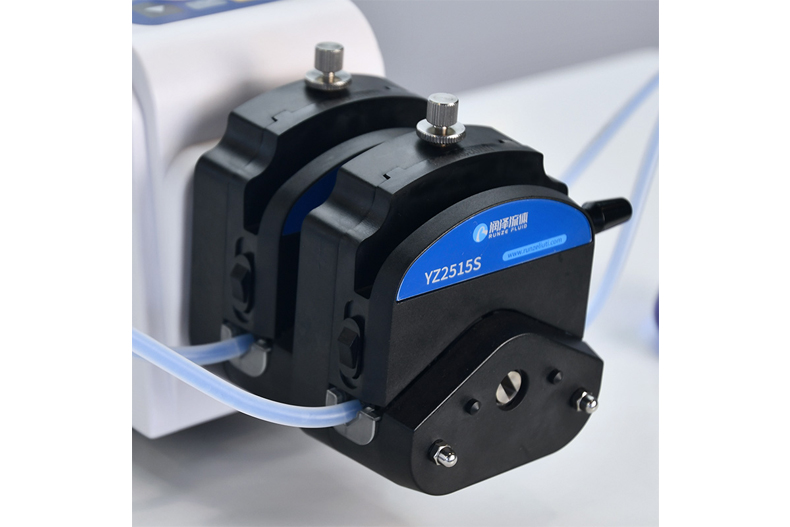

Adapted pump head

Applicable tube

Max flow rate

Max speed

RZ1030

WT 0.8mm

ID≤ 2.54mm

117ml/min

400rpm
