Barbed Union

Barbed unions are made of food grade Polypropylene, which can be sterilized via gamma radiation. This type of tube fitting is available in a variety of standard sizes from 1/6″ to 11/32″ for low pressure plumbing applications with various types of hoses. The barbs grip the inside of the flexible tube to create a seal and easily connect fluid paths without the use of tools.

  • Barbed Union
  • Barbed Union
  • Barbed Union
  • Barbed Union
  • Barbed Union
  • Barbed Union
  • Barbed Union
  • Barbed Union
  • Barbed Union
  • Barbed Union
  • Barbed Union
  • Barbed Union
Send Mail
Share this product:

Video of Barbed Union

Specification of Barbed Union


Equal Barbed Unions

Model No.

Metric/Inch Size

Material

Color

Barbed End (mm)

Soft Tubing ID(mm)

DI-016

1.6-1/16"

PP (Medical Grade)

Natural PP

Ø1.6

1.0-1.6

DI-024

2.4-3/32"

Ø2.4

1.6-2.4

DI-032

3.2-1/8"

Ø3.2

2.4-3.2

DI-040

4.0-5/32"

Ø4.0

3.2-4.0

DI-048

4.8-3/16

Ø4.8

4.0-4.8

DI-064

6.4-1/4"

Ø6.4

4.8-6.4

DI-087

8.7-11/32"

Ø 8.7

6.4-8.7

DI-095
9.5-3/8"
Ø 9.5
8.7-9.5
DI-127
12.7-1/2"
Ø 12.7
9.5-12.7


Reducing Barbed Unions

Model No.

Inch Size

Metric size

Material

Color

Barbed End (mm)

Soft Tubing ID(mm)

BI-016/024

1/16*3/32

1.6*2.4

PP   (Medical Grade)

Natural PP

Ø1.6*2.4

(1.0-1.6)*(1.6-2.4)

BI-016/032

1/16*1/8

1.6*3.2

Ø 1.6*3.2

(1.0-1.6)*(2.4-3.2)

BI-024/032

3/32*1/8

2.4*3.2

Ø 2.4*3.2

(1.6-2.4)*(2.4-3.2)

BI-024/040

3/32*5/32

2.4*4.0

Ø 2.4*4.0

(1.6-2.4)*(3.2-4.0)

BI-032/040

1/8*5/32

3.2*4.0

Ø 3.2*4.0

(2.4-3.2)*(3.2-4.0)

BI-032/048

1/8*3/16

3.2*4.8

Ø 3.2*4.8

(2.4-3.2)*(4.0-4.8)

BI-040/048

5/32*3/16

4.0*4.8

Ø 4.0*4.8

(3.2-4.0)*(4.0-4.8)

BI-040/064

5/32*1/4

4.0*6.4

Ø 4.0*6.35

(3.2-4.0)*(4.8-6.4)

BI-048/064

3/16*1/4

4.8*6.4

Ø 4.8*6.35

(4.0-4.8)*(4.8-6.4)

BI-048/087

3/16*11/32

4.8*8.7

Ø 4.8*8.7

(4.0-4.8)*(6.4-8.7)

BI-064/087

1/4*11/32

6.4*8.7

Ø 6.35*8.7

(4.8-6.4)*(6.4-8.7)

BI-095/127
3/8*1/2
9.5*12.7
Ø 10.35*12.8(8.75-9.5)*(9.5-12.7)

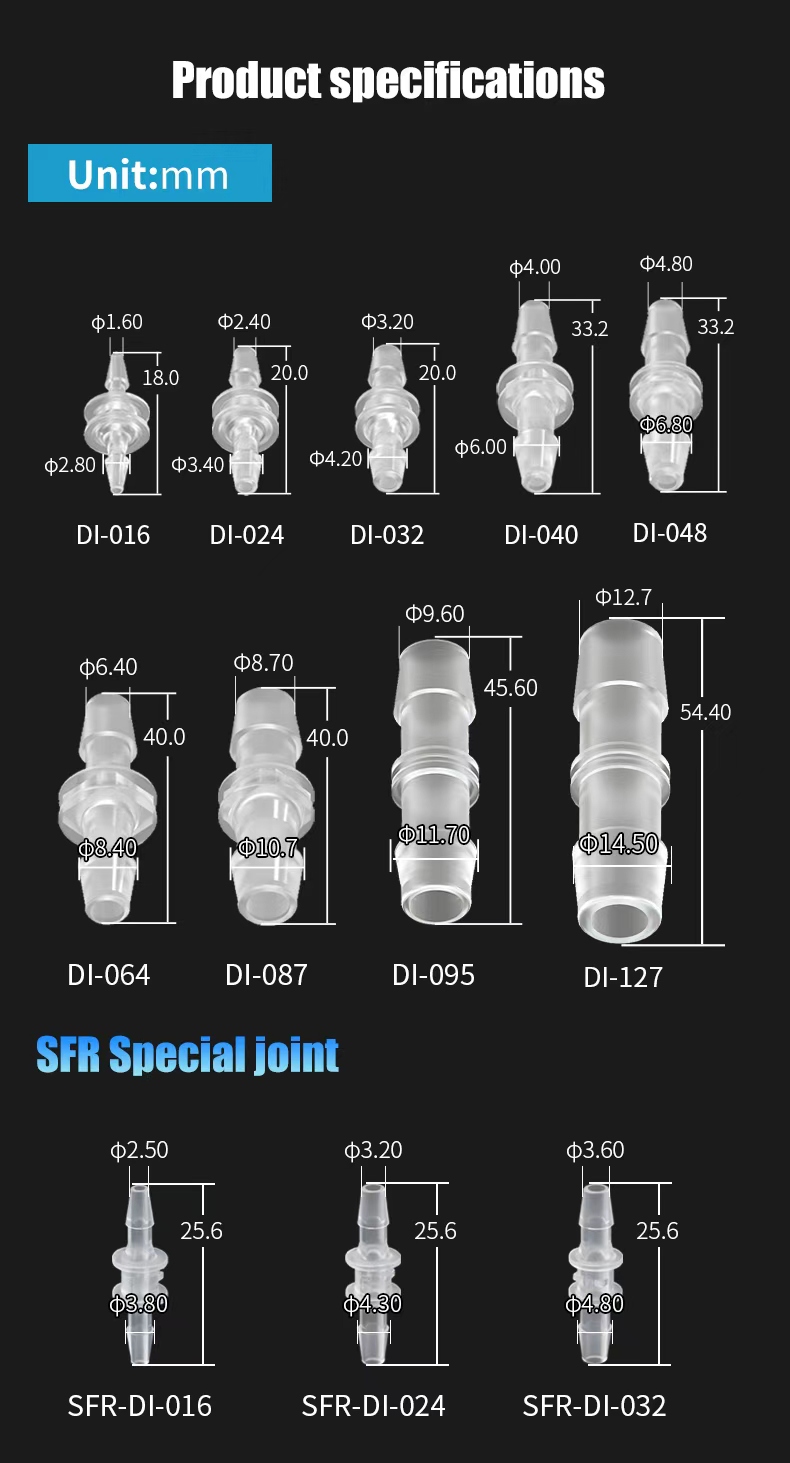

Dimension (unit: mm) of Barbed Union

Equal Barbed Union


 Barbed Reducer Connector



Related Barbed Union PDF
