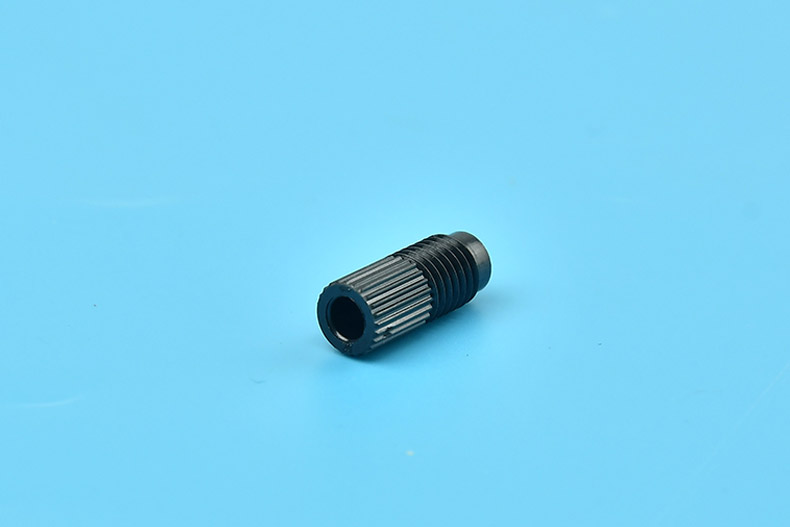

Fangeless Fitting Three-piece Set

The new Flangeless fitting adopts PPS nut and ETFE ferrule, and adds stainless steel lock ring, which can withstand high temperature and prevent the tube from rotating. Can connect rigid tube with OD of 1.6/2.0/2.5/3.0/3.2mm, complete specifications, and save experimental costs. We are willing to provide you with more choices!


Send Mail
Share this product:

Specification of PPS Flangeless Fittings


SKU

Product

Model

1006010562

Flangeless Nut

WF03G-1/4-28-S-Black

1006010560

Flangeless Nut

WF01B-1/4-28-S- Black

1006010563

Flangeless Nut

WD03G-1/4-28-S- Black

1006010550

Flangeless Fitting——three-piece set

WF01B-28S-Black+YE-016F+KCF-038SUS316

1006010551

Flangeless Fitting——three-piece set

WF01B-28S-Black+YE-020F+KCF-038SUS316

1006010555

Flangeless Fitting——three-piece set

WF03G-28S-Black+YE-016F+KCF-038SUS316

1006010556

Flangeless Fitting——three-piece set

WF03G-28S-Black+YE-020F+KCF-038SUS316

1006010557

Flangeless Fitting——three-piece set

WD03G-28S-Black+YK-025F+KCF-045SUS316

1006010558

Flangeless Fitting——three-piece set

WD03G-28S-Black+YK-030F+KCF-045SUS316

1006010559

Flangeless Fitting——three-piece set

WD03G-28S-Black+YK-032F+KCF-045SUS316



Specification of PPS Flangeless Fittings
