Barbed Y Connectors

Barbed Y connectors are precisely molded with FDA-approved polypropylene, designed to effectively join three pieces of soft tubes together in a Y configuration and ideal for building low-pressure hose assemblies. It is optional in a variety of standard sizes from 1/6″ to 11/32″ covering fluid tubing ID from 0.8mm to 8.7mm.

  • Barbed Y Connectors
  • Barbed Y Connectors
  • Barbed Y Connectors
  • Barbed Y Connectors
  • Barbed Y Connectors
  • Barbed Y Connectors
  • Barbed Y Connectors
  • Barbed Y Connectors
Send Mail
Share this product:

Video of Barbed Y Connectors

Specification of Barbed Y Connectors


Model No.

Metric Size

Material

Color

Barbed End (mm)

Soft Tubing ID (mm)

Y-016

1.6

PP   (Medical Grade)

Natural PP

∅1.82

0.8-1.5

Y-020

2.0

∅2.00

1.0-2.0

Y-024

2.4

∅2.50

1.6-2.4

Y-032

3.2

∅3.30

2.4-3.2

Y-040

4.0

∅4.00

3.2-4.0

Y-048

4.8

∅4.80

4.0-4.8

Y-064

6.4

∅6.40

4.8-6.4

Y-087

8.7

∅8.70

6.4-8.7

Y-095
9.5
∅9.508.7-9.5
Y-127
12.7
∅12.79.5-12.7

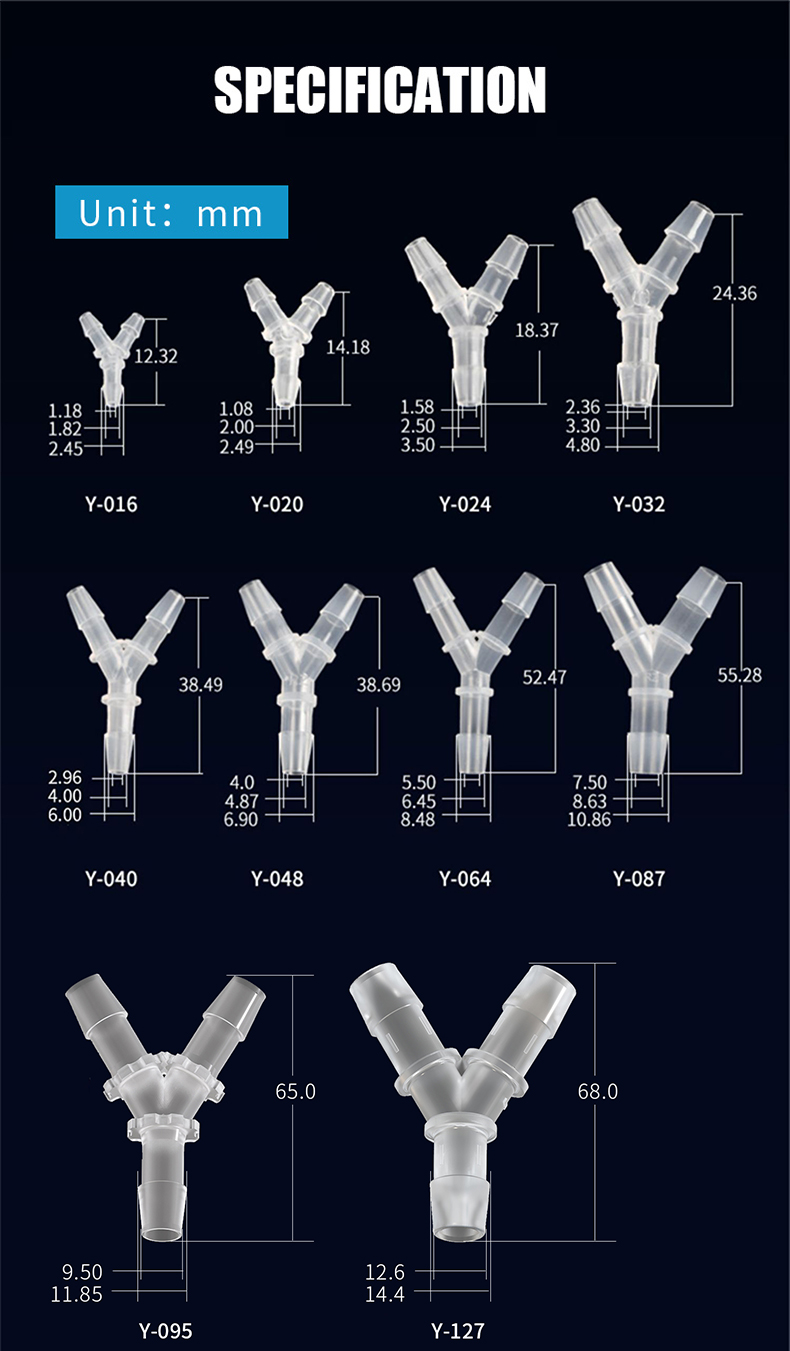

Dimension (unit: mm) of Barbed Y Connectors



Related Barbed Y Connectors PDF

Product Inquiry
Related Products for Barbed Y Connectors

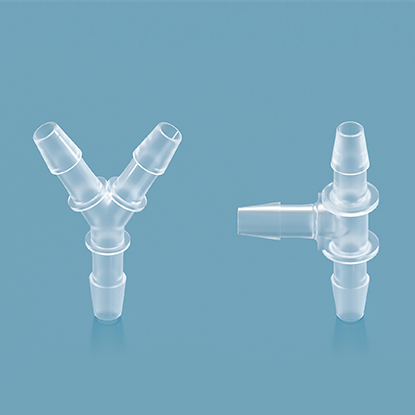

Barbed T Connectors Barbed T Connectors

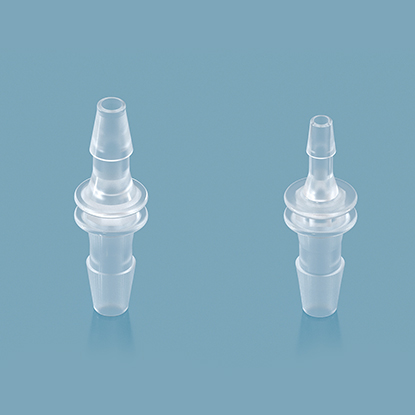

Barbed Union Barbed Union
