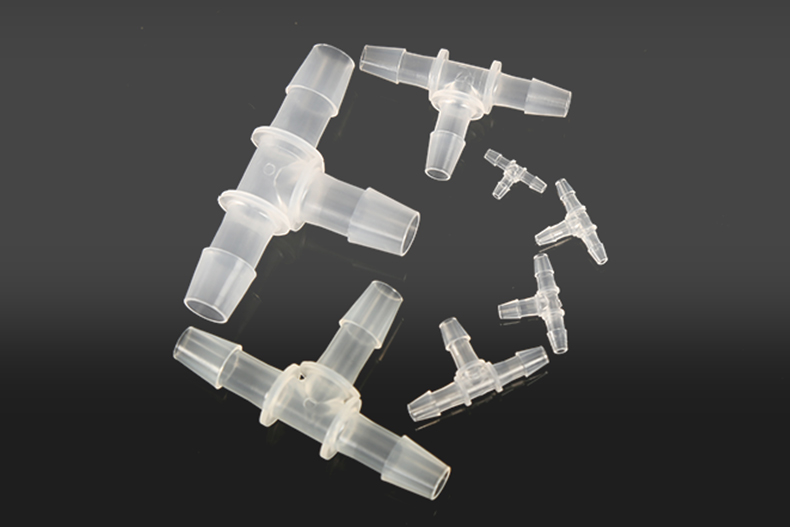

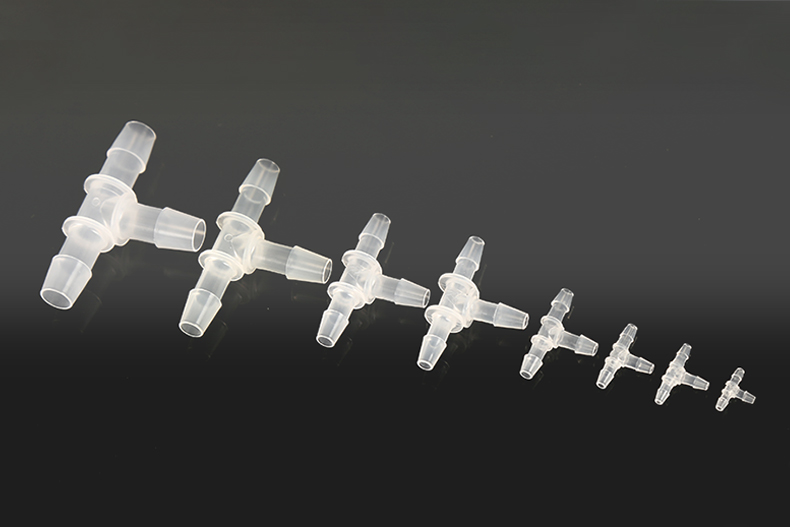

Barbed T Connectors

Barbed T Connectors are designed for quick and easy assembly in low-pressure applications, barbed tube/hose connectors are used to combine or divide fluid flow through flexible fluid tubing. High-quality food grade raw material polypropylene and a variety of sizes from 1/16 to 11/32 make it very popular in peristaltic systems.

  • Barbed T Connectors
  • Barbed T Connectors
  • Barbed T Connectors
  • Barbed T Connectors
  • Barbed T Connectors
  • Barbed T Connectors
  • Barbed T Connectors
  • Barbed T Connectors
Send Mail
Share this product:

Video of Barbed T Connectors

Specification of Barbed T Connectors


Model No.

Metric Size

Material

Color

Barbed End (mm)

Soft Tubing ID (mm)

T-016

1.6

PP

(Medical Grade)

Natural PP

∅1.82

0.8-1.5

T-020

2.0

∅2.00

1.0-2.0

T-024

2.4

∅2.50

1.6-2.4

T-032

3.2

∅3.30

2.4-3.2

T-040

4.0

∅4.00

3.2-4.0

T-048

4.8

∅4.80

4.0-4.8

T-064

6.4

∅6.40

4.8-6.4

T-087

8.7

∅8.70

6.4-8.7

T-095
9.5
∅9.08.7-9..5
T-127
12.7
∅12.79.5-12.7


Dimension (unit: mm) of Barbed T Connectors
