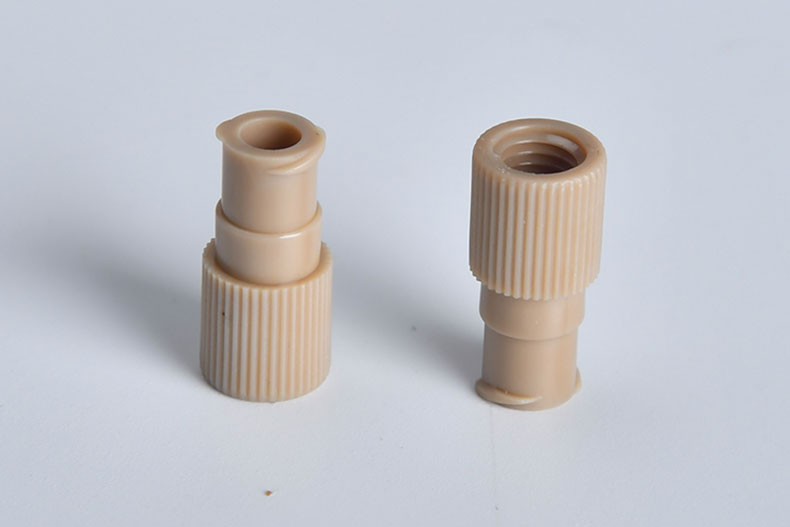

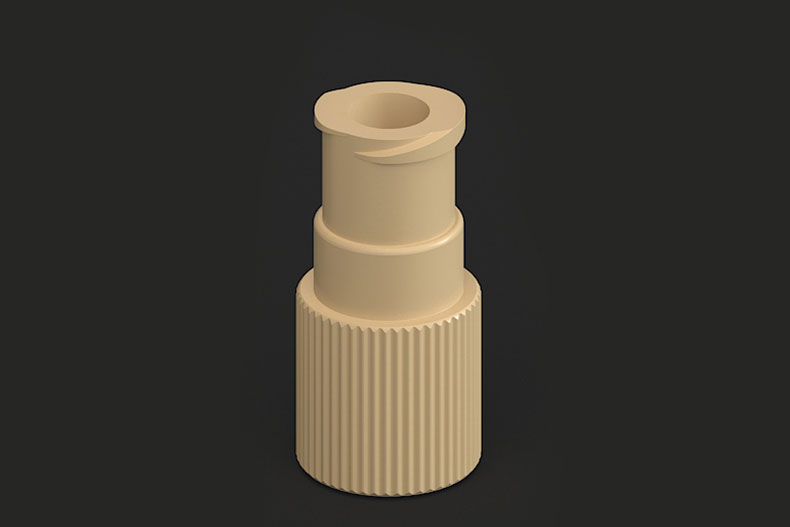

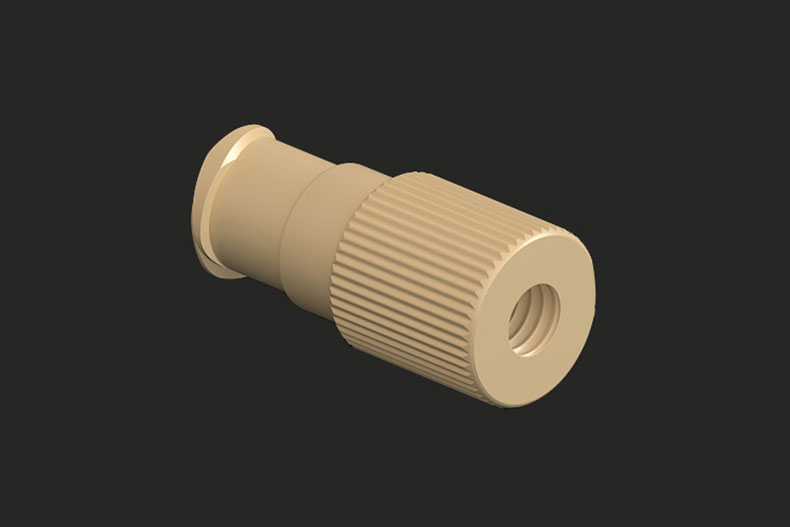

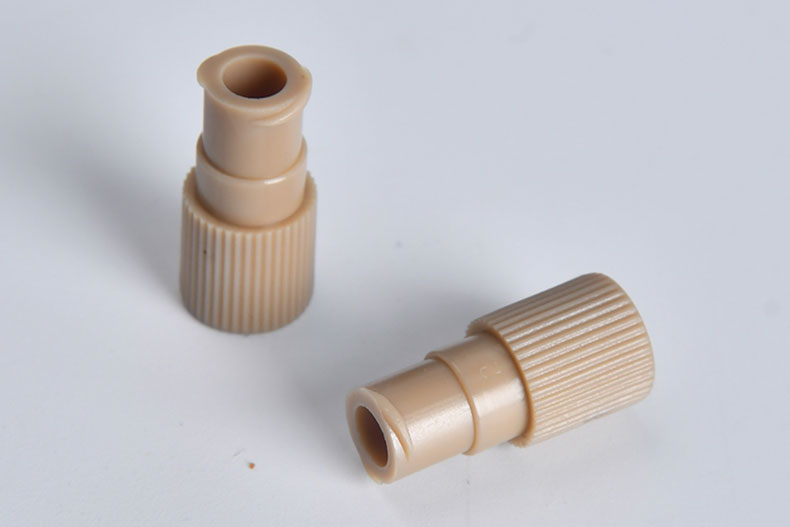

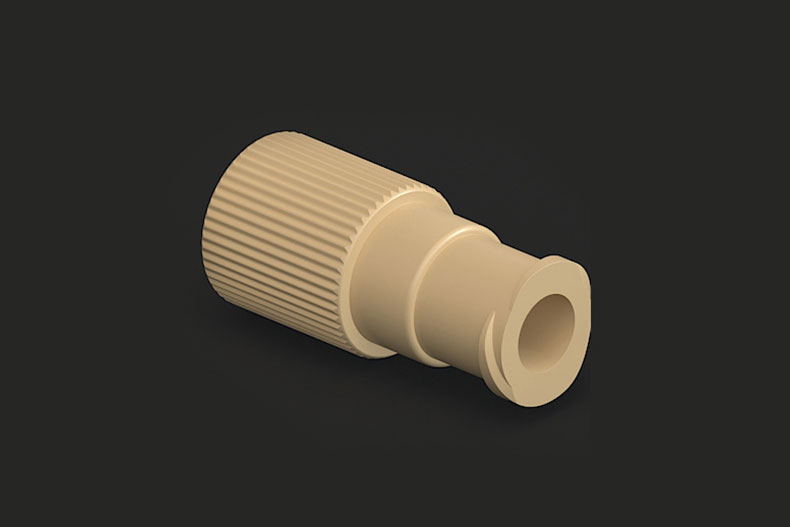

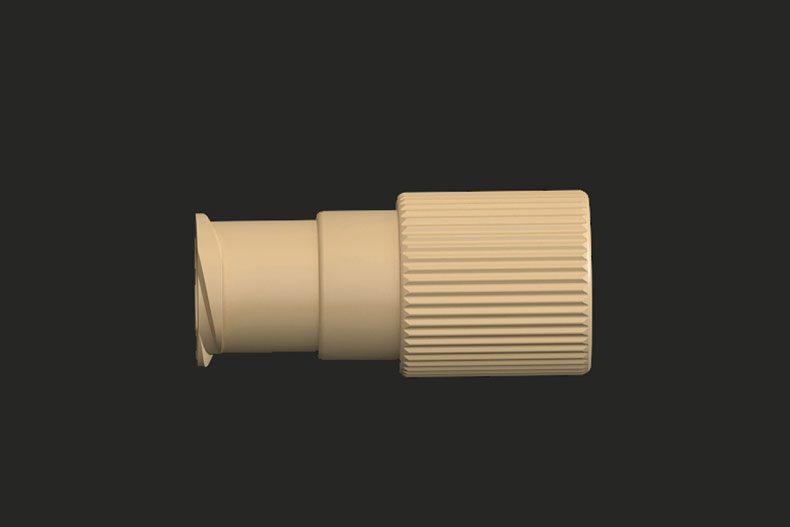

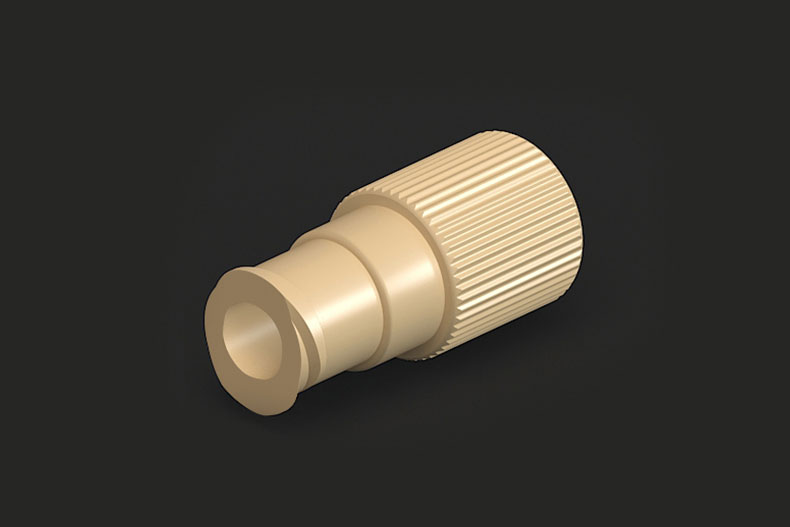

PEEK Female Thread Luer Adapter

Peek female thread luer adapter, one of RUNZE newest peek fittings. PEEK is a type of material with high mechanical strength, it is suitable for hydraulic systems that require repeated disassembly and relative high pressure in liquid chromatography and biological analysis instruments.

  • PEEK Female Thread Luer Adapter
  • PEEK Female Thread Luer Adapter
  • PEEK Female Thread Luer Adapter
  • PEEK Female Thread Luer Adapter
  • PEEK Female Thread Luer Adapter
  • PEEK Female Thread Luer Adapter
  • PEEK Female Thread Luer Adapter
  • PEEK Female Thread Luer Adapter
Send Mail
Share this product:

Features of PEEK Female Thread Luer Adapter


  • Designed to adapt luer adapters to 10-32 UNF or 1/4-28 UNF threaded ports

  • Long-term working temperature range -100℃~+250℃

  • Suitable for standard 10-32UNF conical fittings or 1/4-28UNF flat bottom threaded fittings


Specifications of PEEK Female Thread Luer Adapter



SKUModelThreadFlow path DiameterMaterial
RH-M
1011130001RH-M-(1/4-28)N-K1/4-28UNF
PEEK natural
1011130002RH-M-(10-32)N-K10-32UNF
PEEK natural
RH-G
1008050033RH-G-(1/4-28)N-S1/4-28UNF0.8 mmPPS natural
1008050034RH-G(- 10-32)N-S10-32UNF0.8 mmPPS natural



Related Products of PEEK Female Thread Luer Adapter


It is recommended to be used with peek fittings and tubes. Please refer to https://www.runzefluid.com/products/peek-fittings/ and https://www.runzefluid.com/products/fluid-tubing/


PEEK flanged fittings- two pieces

1/4-28UNF thread

PEEK flangeless fittings- two pieces

1/4-28UNF thread

PEEK flangeless fittings- three pieces

1/4-28UNF thread

PEEK one-piece hand tightening fittings

1/4-32UNF thread

PEEK hand tightening fittings - two pieces

1/4-32UNF thread

PEEK capillary tube


FEP tube


PTFE tube

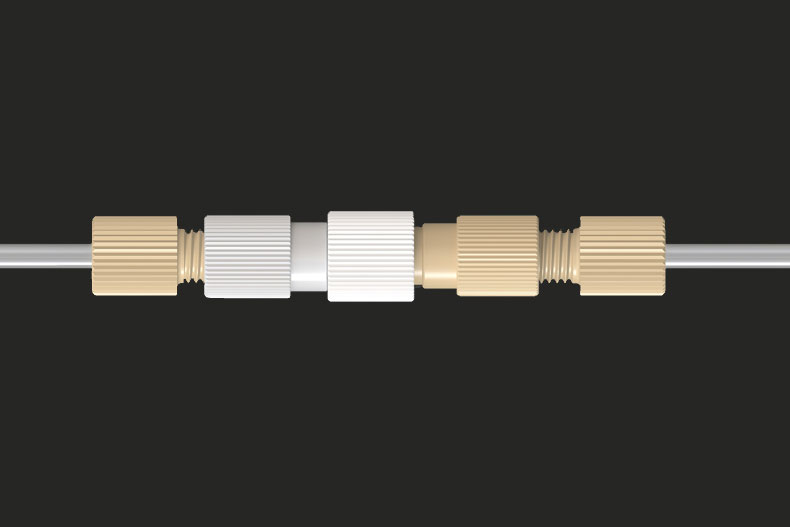

Application of PEEK Female Thread Luer Adapter


PEEK Female Thread Luer Adapter


PEEK Female Thread Luer Adapter


PEEK Female Thread Luer Adapter



Details of PEEK Female Thread Luer Adapter


PEEK Female Thread Luer Adapter
