PTFE Tube

Name: PTFE Tube
Brand: Nanjing Runze Fluid Control Equipment Co., LTD.

PTFE tube is kind of traditional clear rigid Teflon tubing in milk-white look which has strict tolerance requirements on inner and outer diameters, inner diameter to ensure high precision fluid volumes while outer diameter to ensure matching with standard tube fittings. It is widely used in microfluidic fluid analyzers because of its chemical resisting capability. Runze Fluid is a reliable tubing manufacturer offer different types of tube including PTFE tube, FEP tube, etc. Contact us now to check more we can offer.

Send Mail

PTFE (PolyTetraFluoroEthylene, often described as Teflon®)

PTFE tubing has the best performances in terms of chemical and thermal resistance and non-stick properties. Compared to similar fluoropolymers, PTFE offers the best price/performance ratio. In fact, it has many advantages, including unrivaled chemical resistance, a surface that facilitates flow, non-toxicity and chemical inert properties. When used in microfluidics, its rigidity can stabilize the flow rate and increase the reactivity of your microfluidic system.

RUNZE PTFE Tubing continuous operating temperature is from -100°C to 150°C

Product name	PTFE tube
Color	Milk white
CUT Temperature	-100℃- 150℃
Tolerance	±0.1mm
Application	Pharmaceuticals, medicine, lab, industry

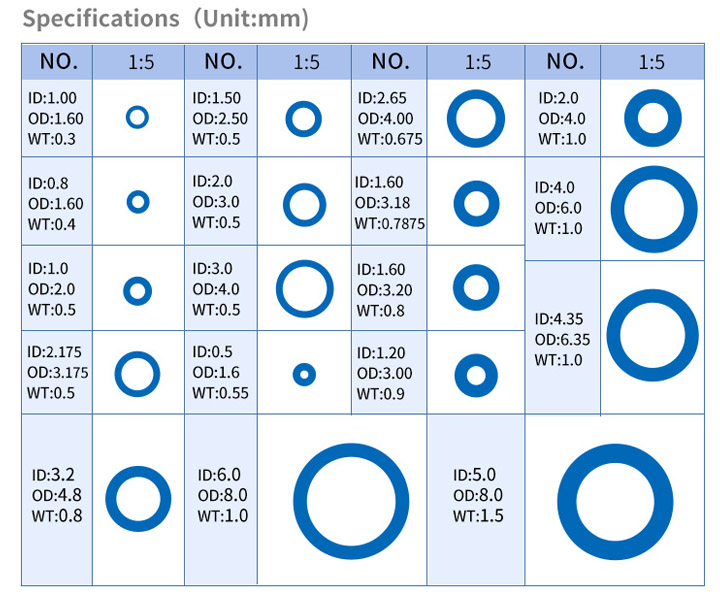

Specification of RUNZE PTFE Tube

SKU	Model No.	ID (mm)	OD (mm)	WT (mm)	Color
1005040013	TFLG0001-E(0.8*1.6)	0.8	1.6	0.4	milk white
1005040009	BS-TFLG-E-Φ1*Φ2	1	2	0.5
1005040018	TFLG0003-E(1.5*2.5)	1.5	2.5	0.5
1005040019	TFLG0004-E(2*3)	2	3	0.5
1005040017	TFLG0005-E(2.175*3.175)	2.175	3.175	0.5
1005040010	BS-TFLG-E-Φ3*Φ4	3	4	0.5
1005040012	TFLG0007-E(1.6*3.2)	1.6	3.2	0.8
1005040029	BS-TFLG-E-Φ2*Φ4	2	4	1
1005040026	BS-TFLG-E-Φ4*Φ6	4	6	1
1005040020	BS-TFLG-E-Φ4.35*Φ6.35	4.35	6.35	1
1005040030	BS-TFLG-E-Φ5*Φ8	5	8	1.5
1066050004	TFLG-E-Φ3.2*Φ4.8	3.2	4.8	0.8
