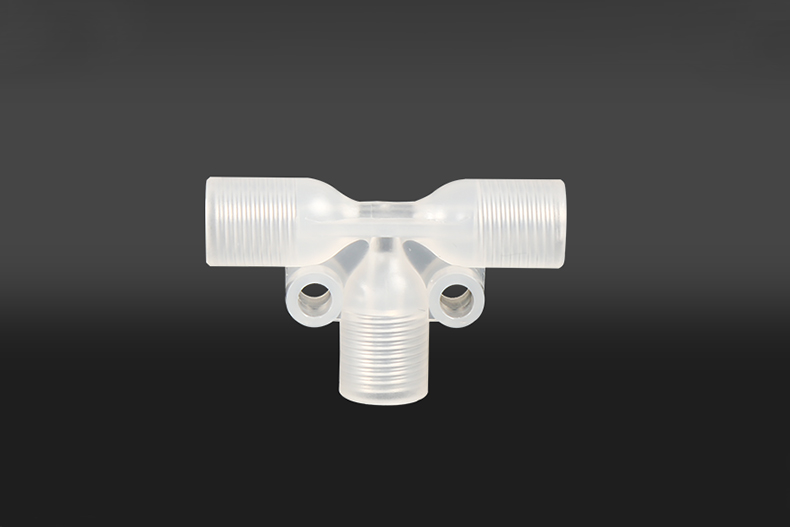

Low Pressure Tees is used to connect three pieces of Teflon tubing together to create a T shape flow path in low pressure systems, designed with mounting holes to fix the channels tight so as not to affect the dispensing accuracy, 1/4-28UNF female threads works as receiving ports for male 1/4-28UNF fittings and its tubing.
Model No. | Material | Color | Female Thread | Pressure Rating Room Temperature (psi /MPa) | Tubing OD (mm) |
NT03-28P | PP | Natural PP | 1/4-28UNF | 116/0.8 | 3.2/3.175/3.0/2.5/ 2.0/1.6 |
NT03-28E | PTFE | Natural PTFE |
