Low Pressure Y Connectors

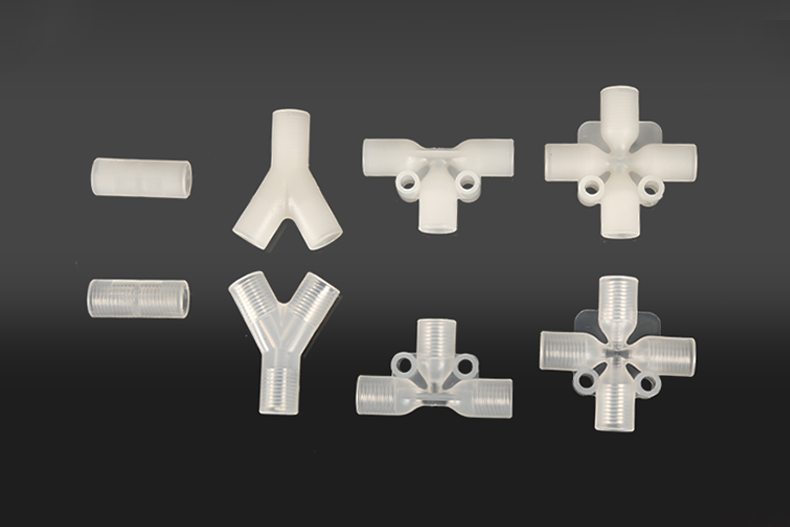

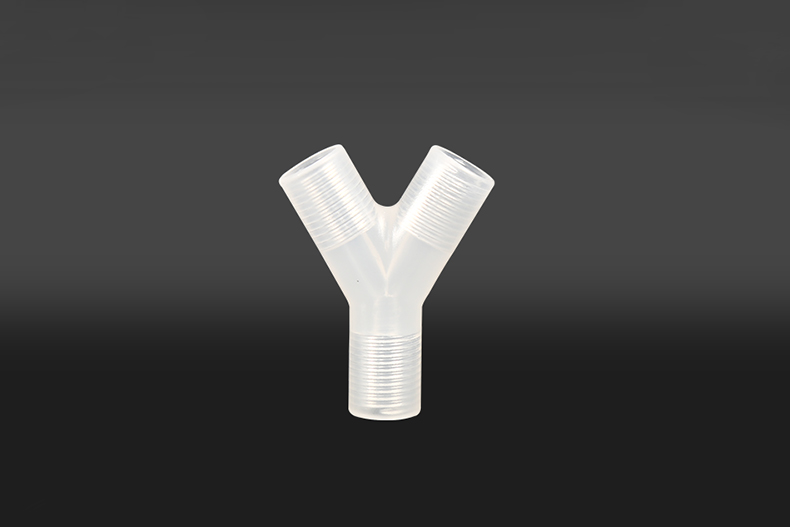

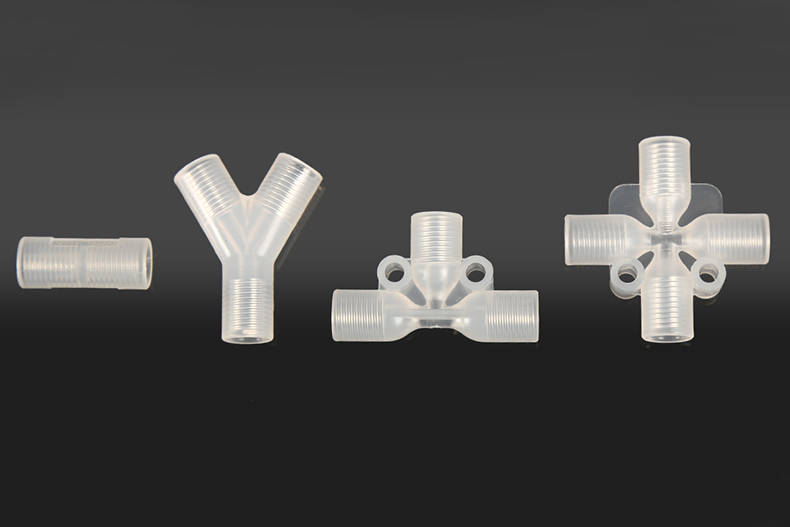

Low Pressure Y Connectors are chosen to connect three pieces of Teflon tubing together to create a Y shape flow path in low pressure systems, designed with 1/4-28UNF female threads works as receiving ports for male 1/4-28UNF fittings and its tubing, medical grade PP and PTFE materials are biocompatible for a variety of fluid systems.

  • Low Pressure Y Connectors
  • Low Pressure Y Connectors
  • Low Pressure Y Connectors
  • Low Pressure Y Connectors
  • Low Pressure Y Connectors
  • Low Pressure Y Connectors
Send Mail
Share this product:

Video of Low Pressure Y Connectors

Specification of Low Pressure Y Connectors

Low Pressure Y Connectors


Model No.

Material

Color

Female Thread

Pressure Rating Room Temperature (psi /MPa)

Tubing OD (mm)

NY03-28P

PP

Natural PP

1/4-28UNF

116/0.8

3.2/3.175/3.0/2.5/2.0/1.6

NY03-28E

PTFE

Natural PTFE


Dimension (unit: mm) of Low Pressure Y Connectors


Low Pressure Y Connectors
