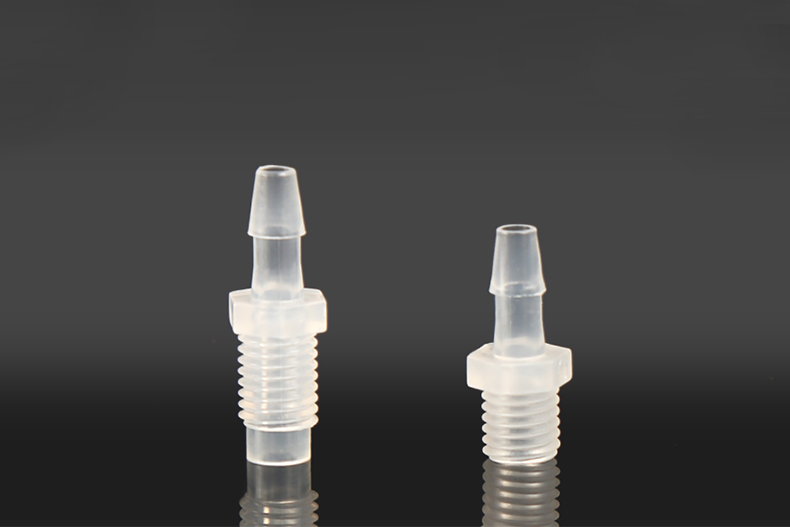

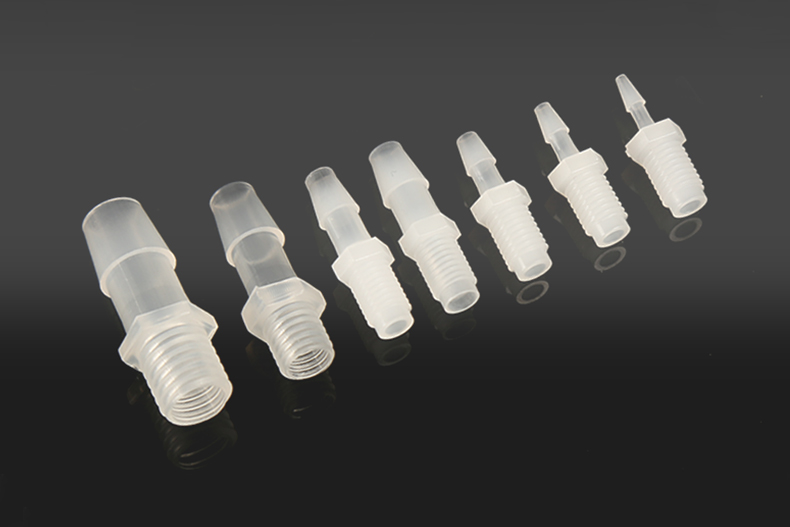

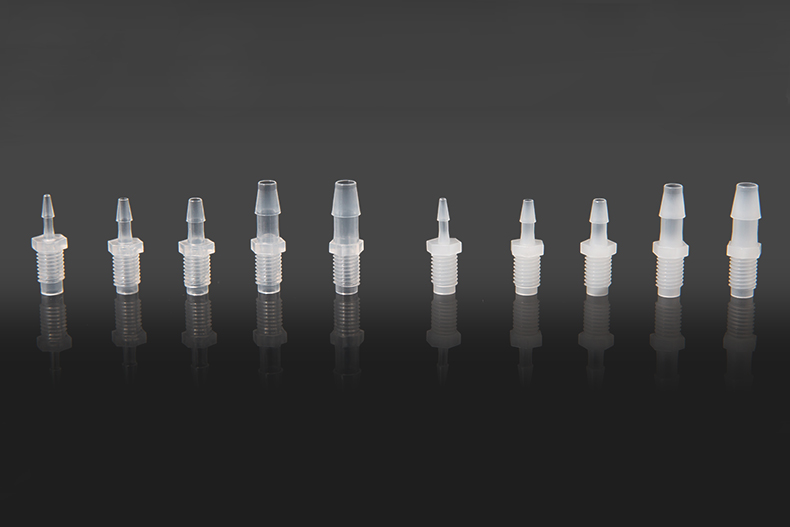

Barb-to-Male 1/4-28UNF, M8, M10, M12 adapters are luer lock barb adapters and the ideal fittings to connect flexible tubing ID0.8-4.8mm with the female threaded fittings or low-pressure systems, no tools needed for assembly. High-quality medical grade raw materials PP and PTFE are optional, PP is used for non-corrosive liquid and environment while PTFE is used for strongly corrosive liquid and environment.
Model No. | Description | Tube ID (mm) | Male Thread | Material |
WZ-016L-PP | Thread to Barbed Adapters -Metric 1.6mm-PP | 0.8-1.6mm | 1/4-28UNF 10.5mm Length | PP |
WZ-024L-PP | Thread to Barbed Adapters -Metric 2.4mm-PP | 1.6-2.4mm | ||
WZ-032L-PP | Thread to Barbed Adapters -Metric 3.2mm-PP | 2.4-3.2mm | ||
WZ-040L-PP | Thread to Barbed Adapters -Metric 4.0mm-PP | 3.2-4.0mm | ||
WZ-048L-PP | Thread to Barbed Adapters -Metric 4.8mm-PP | 4.0-4.8mm | ||
| WZ-016L-PTFE | Thread to Barbed Adapters -Metric 1.6mm-PTFE | 0.8-1.6mm | 1/4-28UNF 10.5mm Length | PTFE |
| WZ-024L-PTFE | Thread to Barbed Adapters -Metric 2.4mm-PTFE | 1.6-2.4mm | ||
| WZ-032L-PTFE | Thread to Barbed Adapters -Metric 3.2mm-PTFE | 2.4-3.2mm | ||
| WZ-040L-PTFE | Thread to Barbed Adapters -Metric 4.0mm-PTFE | 3.2-4.0mm | ||
| WZ-048L-PTFE | Thread to Barbed Adapters -Metric 4.8mm-PTFE | 3.2-4.0mm | ||
WZ-016-PP | Thread to Barbed Adapters -Metric 1.6mm-PP | 0.8-1.6mm | 1/4-28UNF 6.0mm Length | PP |
WZ-024-PP | Thread to Barbed Adapters -Metric 2.4mm-PP | 1.6-2.4mm | 1/4-28UNF 6.2mm Length | |
WZ-032-PP | Thread to Barbed Adapters -Metric 3.2mm-PP | 2.4-3.2mm | 1/4-28UNF 6.2mm Length | |
WZ-040-PP | Thread to Barbed Adapters -Metric 4.0mm-PP | 3.2-4.0mm | 1/4-28UNF 6.0mm Length | |
| WZ-048-PP | Thread to Barbed Adapters -Metric 4.8mm-PP | 4.0-4.8mm | 1/4-28UNF 6.0mm Length | |
| M8-064-PP | Thread to Barbed Adapters -Metric 6.4mm-PP | 4.8-6.4mm | M8 8.0mm Length | |
M10-087-PP | Thread to Barbed Adapters -Metric 8.7mm-PP | 6.4-8.7mm | M10 10.0mm Length |
1. Thread to barbed adapters need to match with female receiving port of same thread type.
2. One-Piece Fittings Installation Steps:
a. Insert the thread to barbed adapter into the receiving ports until it bottoms out.
b. Connect the flexible tubing into the barbed end
