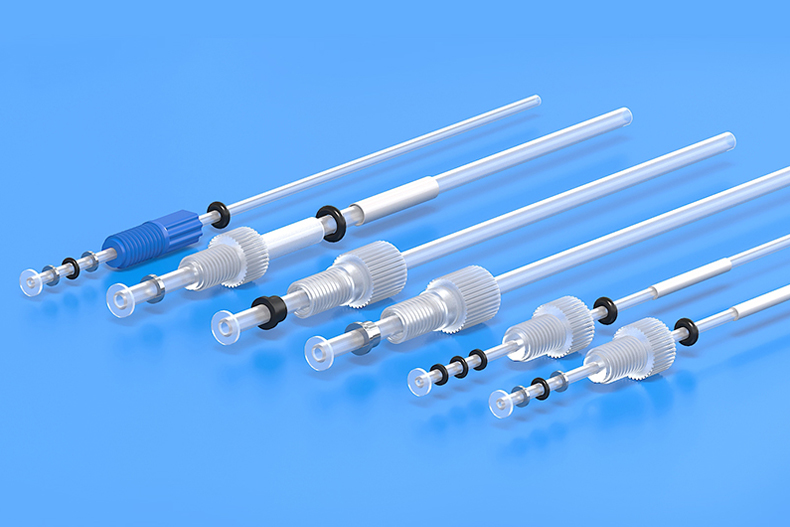

Flanged Tubing Set

Name: Flanged Tubing Set
Brand: Nanjing Runze Fluid Control Equipment Co., LTD.

Flanged Tubing Set is a traditional flat-bottom fittings without change in tube diameter to create a stable flow rate system, it can be disassembled repeatedly without affecting the sealings. We offer a wide range of options including PPS, PP, PVDF, PEEK series and used for standard rigid tubing OD 1.6/2.0/2.5/3.0/3.2mm easy and fast installation. We customized specific parts matching based on users' flexible application requirements.

Send Mail

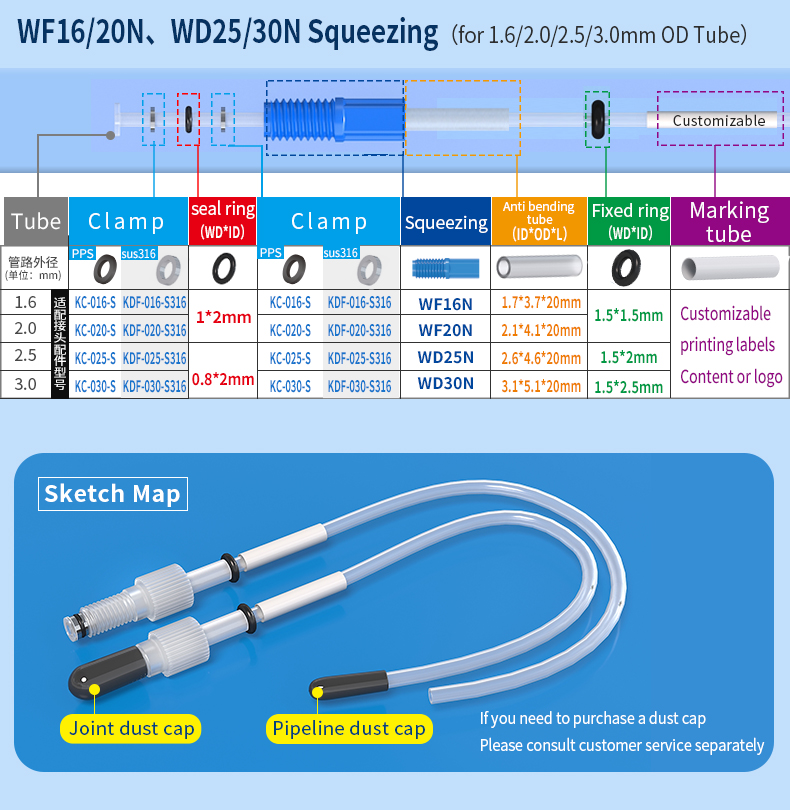

Specification of Flanged Tubing Set

Product Name: Flanged tubing set
Main Parts: Flanged nut (PPS, PP, PVDF, PEEK), clamp (PPS, SUS316)
Optional parts: Sealing ring (FKM), anti-bending tube (Silicone), anti-retraction ring (FKM), number marking tube (customized)
Applicable tube size: OD1.6/2.0/2.5/3.0/3.175/3.2mm
Thread: 1/4-28UNF, M6, 10-32UNF, 6-40UNF
