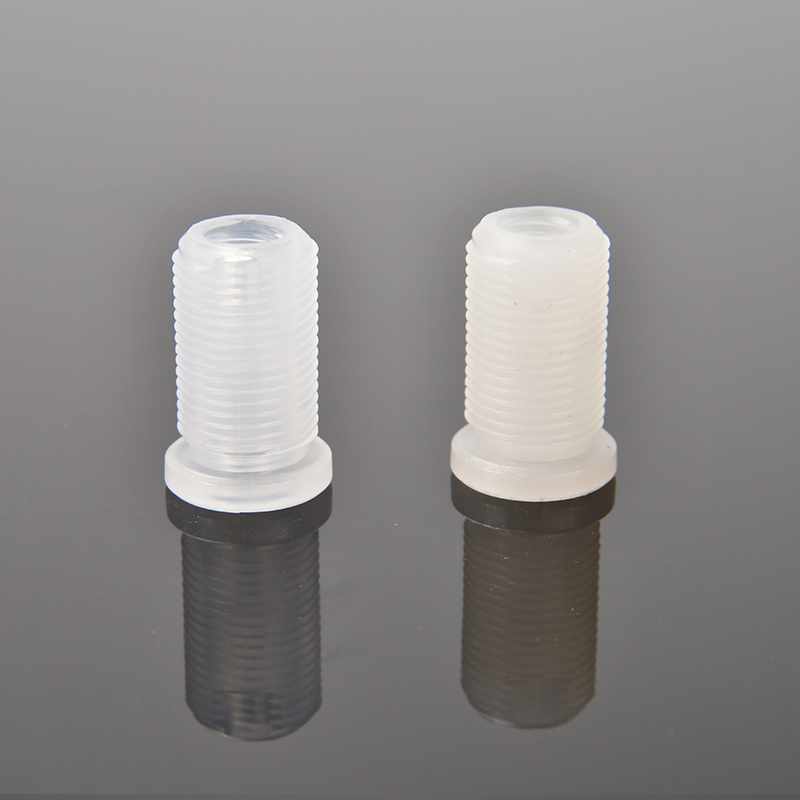

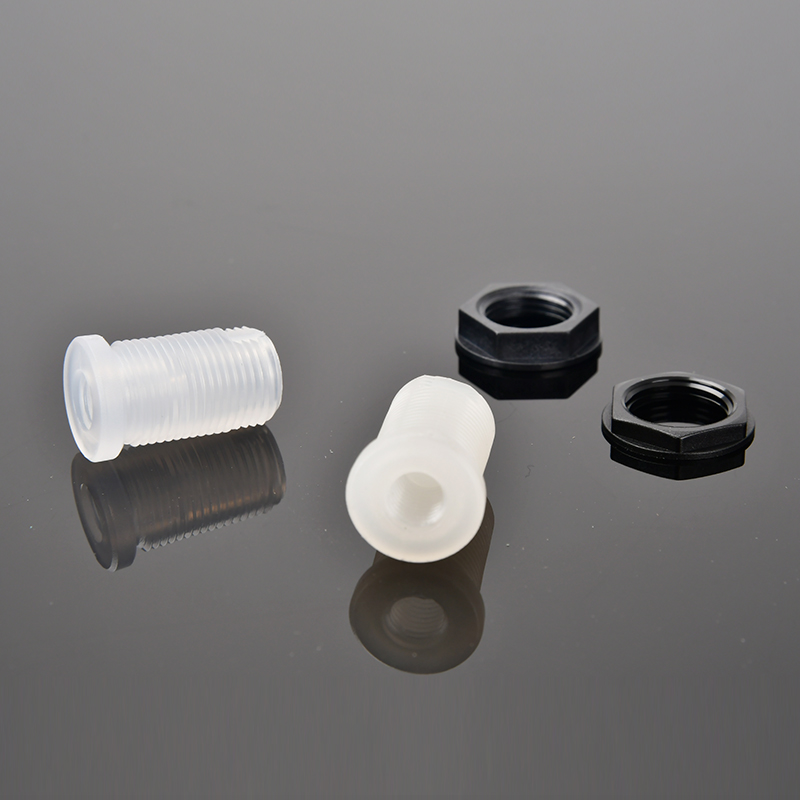

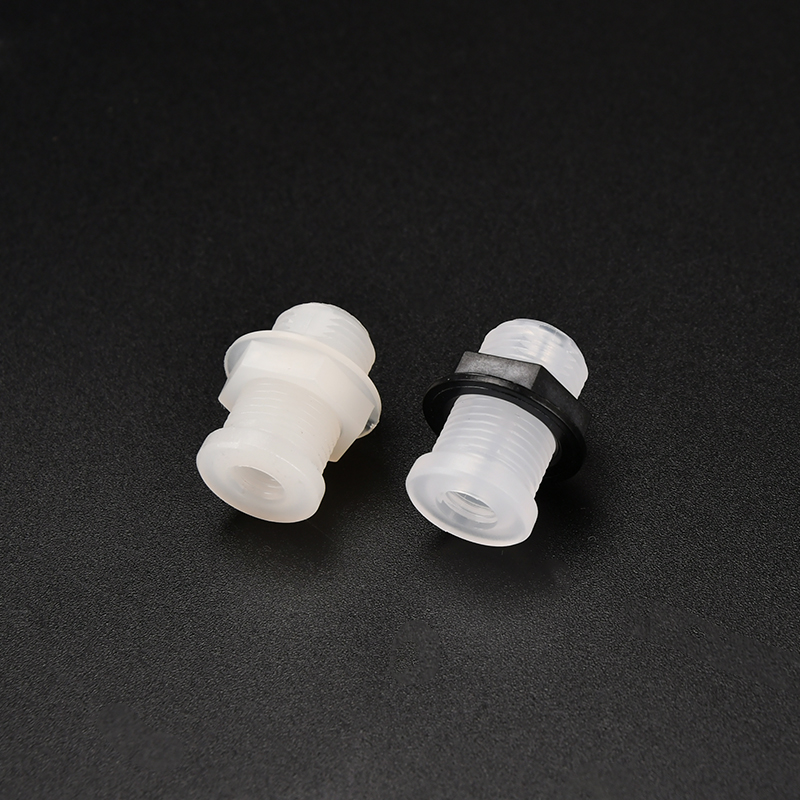

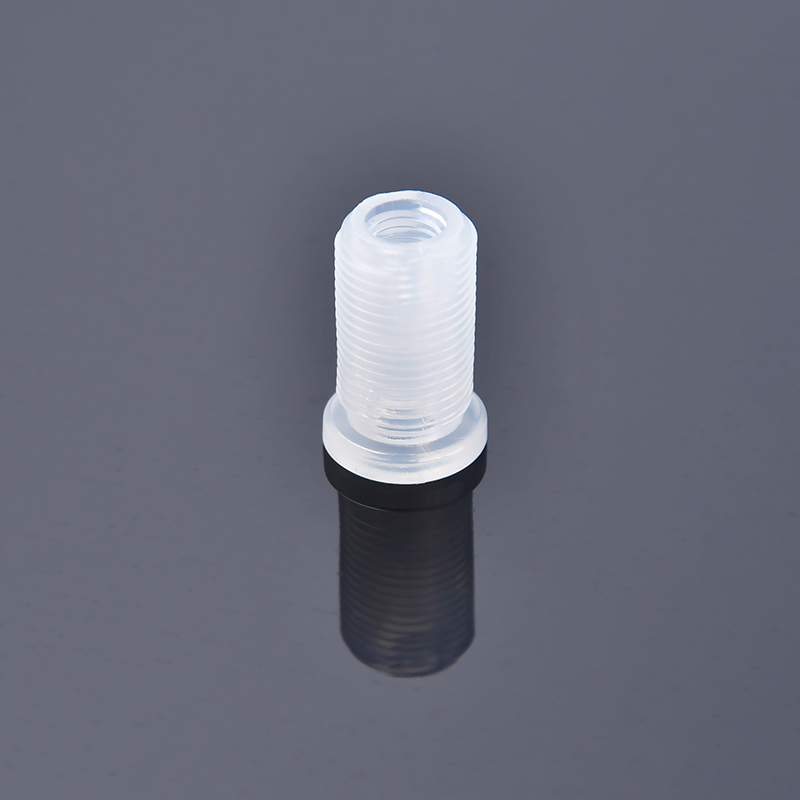

Low Pressure Bulkhead Unions

Low Pressure Bulkhead Unions are designed for connecting flexible or Teflon tubing through equipment housing via a wooden, metal or acrylic panel to create a full line of flow path in low pressure fluidic systems. Medical grade raw materials and high-tech molding technology make the fittings staying at high quality level.


Send Mail
Share this product:

Video of Low Pressure Bulkhead Unions

Specification of Low Pressure Bulkhead Unions

Model No.

Material

Color

Female Thread

Male Thread

Pressure/Rating Room Temp (psi /MPa)

Tubing OD (mm)

NC-28P

PP

Natural   PP

1/4-28 UNF

M12

116/0.8

3.2/3.175/ 3.0/  2.5/2.0/1.6

NC-28E

PTFE

Natural PTFE

M12*1-S

PPS

Natural  PPS

M12


/

M12*1-E

PTFE

Natural PTFE

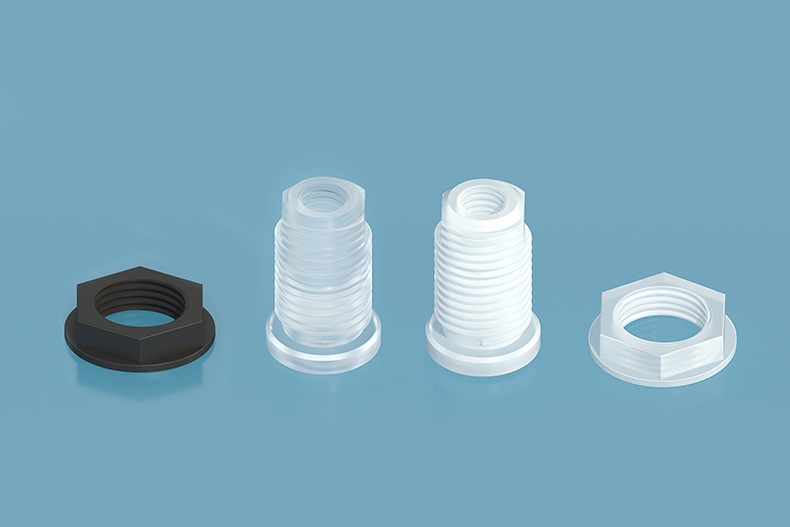

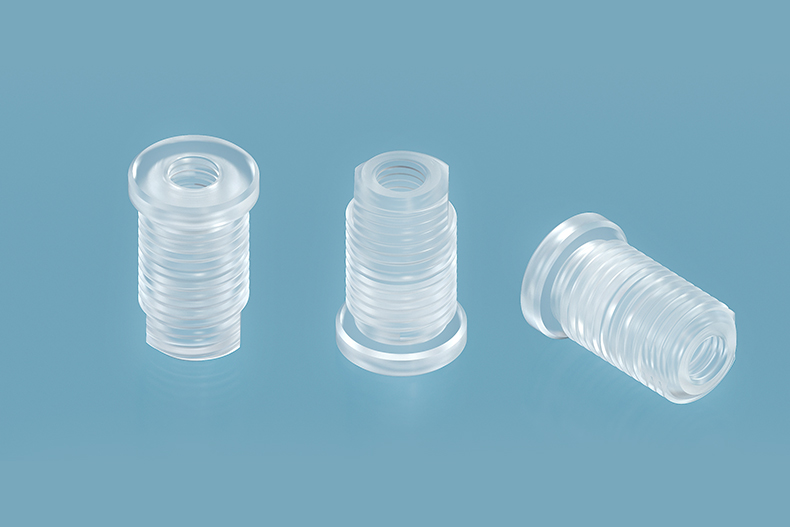

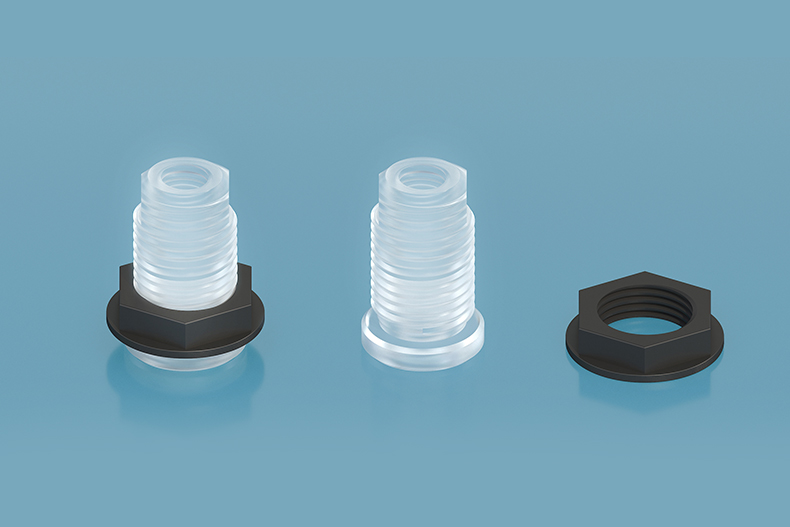

Product Assortment

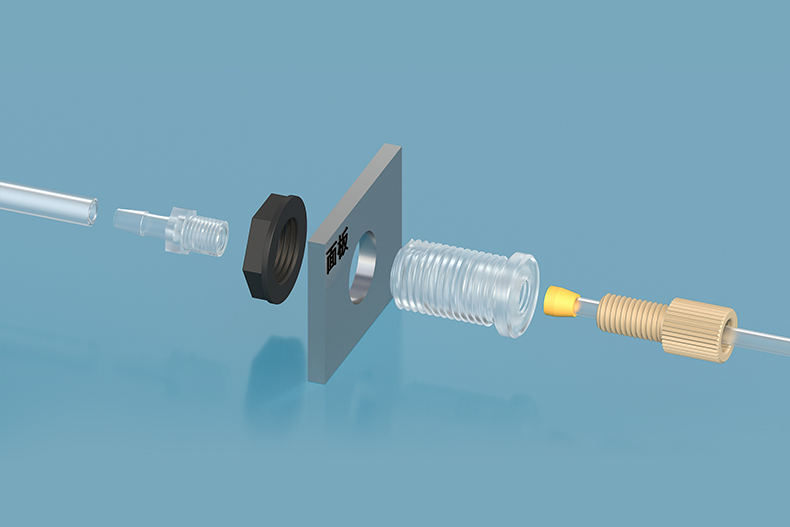

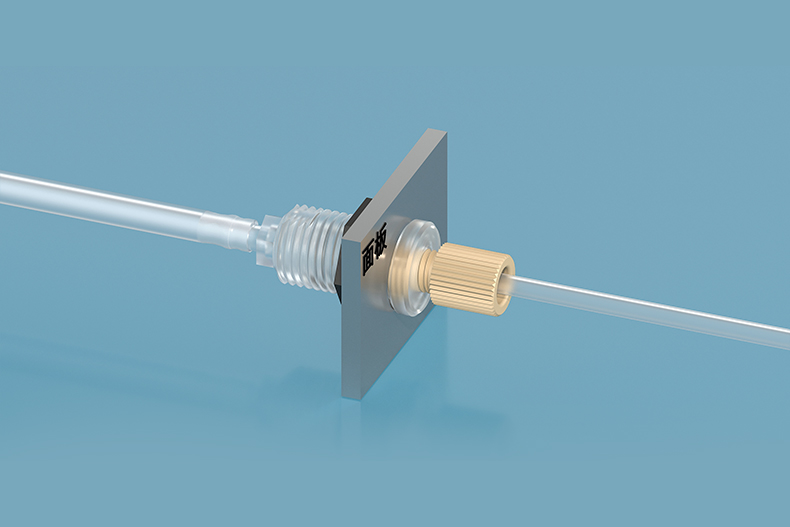

Connection Display



Dimension (unit: mm) of Low Pressure Bulkhead Unions
