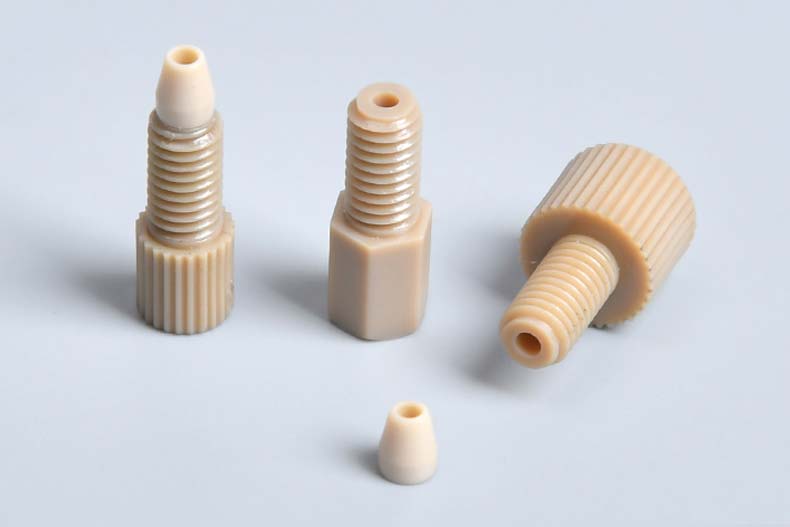

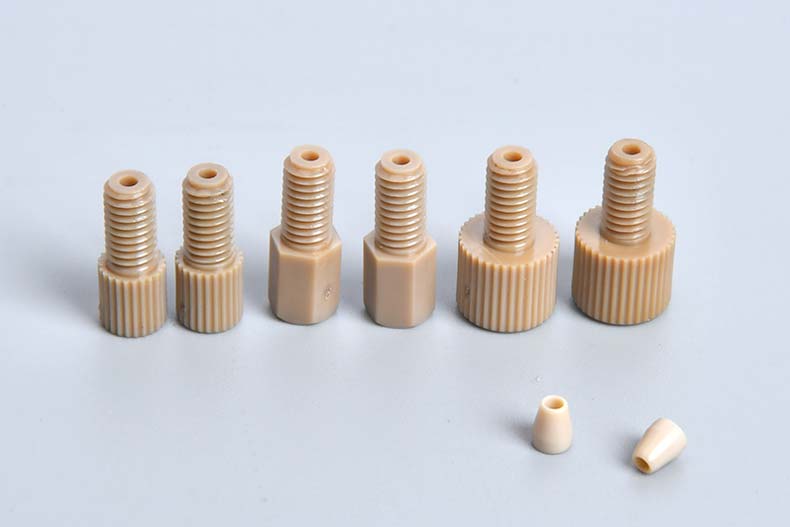

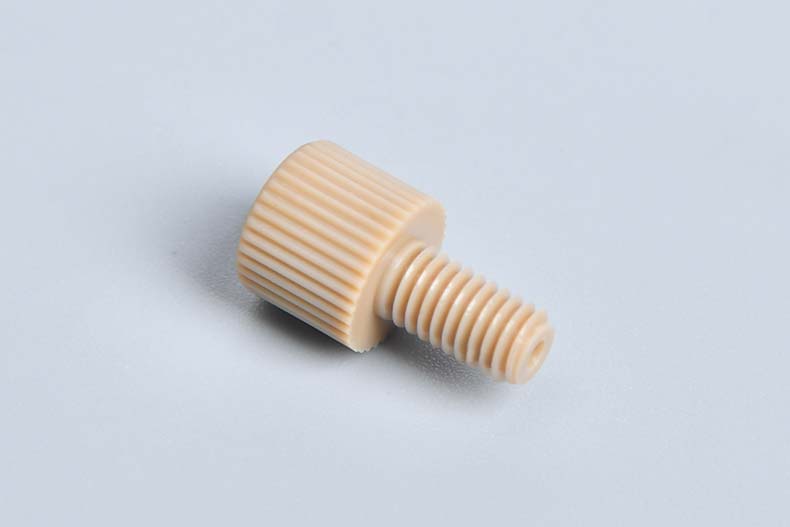

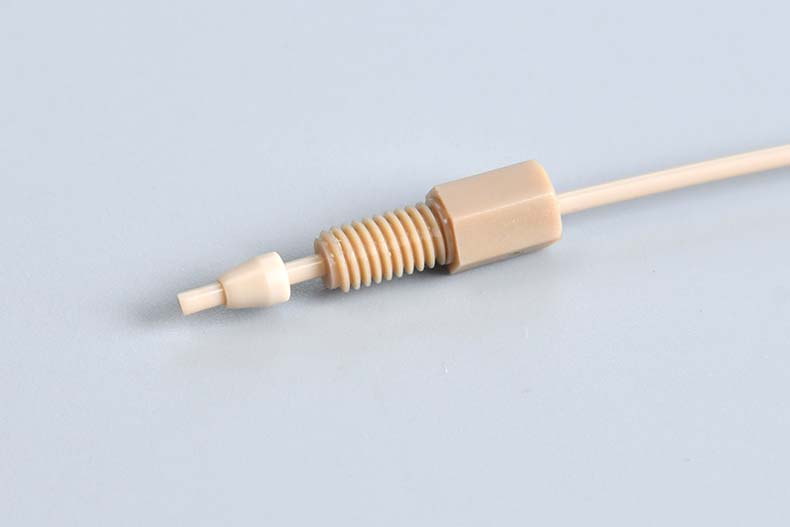

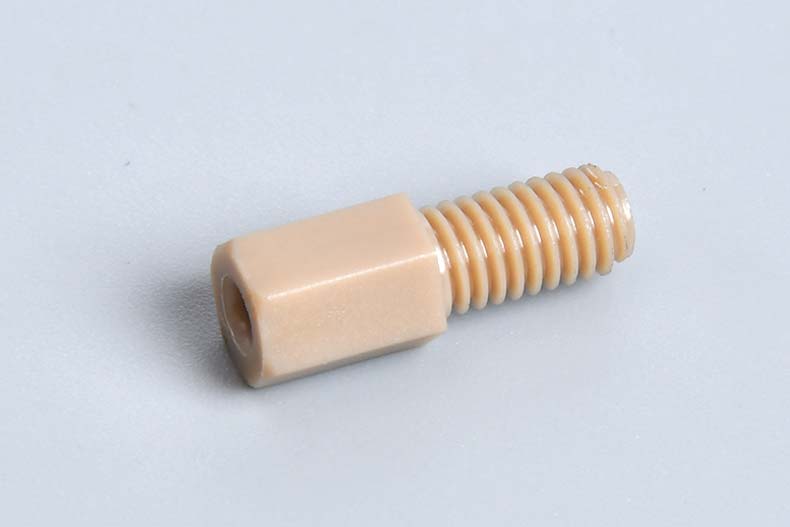

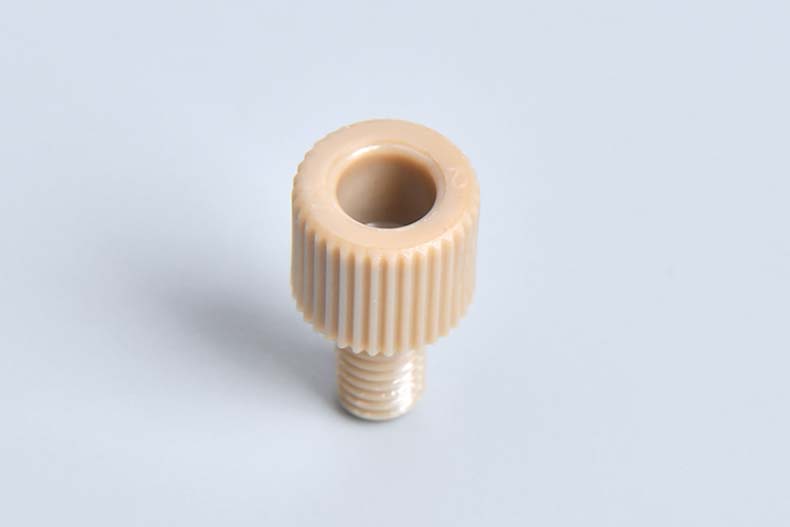

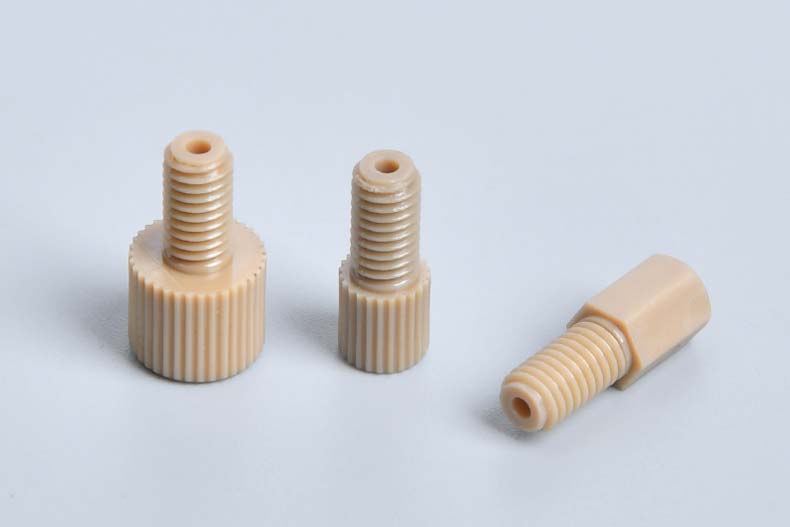

PEEK Hand Tighten Flangeless Fitting-Two-piece Set

Name: PEEK Hand Tighten Flangeless Fitting-Two-piece Set
Brand: Nanjing Runze Fluid Control Equipment Co., LTD.

Peek Hand Tighten Flangeless Fitting-Two-piece Set, one of RUNZE newest peek fitting, which can be used for tubing OD1.6mm. PEEK is a type of material with high mechanical strength, it is suitable for hydraulic systems that require repeated disassembly and relative high pressure in liquid chromatography and biological analysis instruments.

Send Mail

Video of PEEK Hand Tighten Flangeless Fitting-Two-piece Set

Features of PEEK Hand Tighten Flangeless Fitting-Two-piece Set

Two-piece design, economical and practical, only need to replace the flangeless nut
Continuous operating temperature: -100°C~+250°C
10-32UNF threaded coned head for HPLC system application
Suitable for 1.6 mm OD PEEK/PTFE/ETFE/FEP and other semi-rigidtubes

Application Note

Application Note Peek Hand Tighten Flangeless Fitting Two Piece Set

Specification of PEEK Hand Tighten Flangeless Fitting-Two-piece Set

SKU	Model	Thread	Tube OD	Material
1011010082	WF15E-32K * YC-016K	10-32UNF Coned	1.6mm	PEEK natural
1011010084	WF11C-32K * YC-016K	10-32UNF Coned	1.6mm	PEEK natural
1011010086	WF13G-32K * YC-016K	10-32UNF Coned	1.6mm	PEEK natural
1011010088	WF11A-32K * YC-016K	10-32UNF Coned	1.6mm	PEEK natural
