Quick Connect & Disconnect Fittings | Coupling

Quick Connect & Disconnect Fittings | Coupling is a fast, rotating connector with a compact structure and high flow rate. Its special design can serve as a preferred alternative to the Luer Adapter. Multiple types with a wide range of applications, Runze looking forward to your choice!


Send Mail
Share this product:

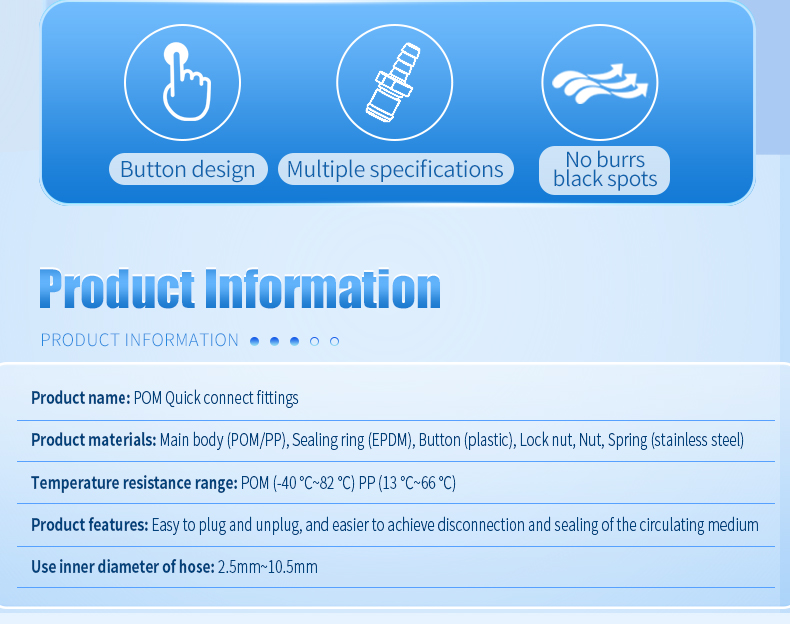

Information of Quick Connect & Disconnect Fittings | Coupling

Product name

Quick Connect & Disconnect Fittings | Coupling

Material

Main body (POM/PP), Sealing ring (EPDM), Button/Lock nut/Nut/Spring (stainless steel)

Temperature resistance range

POM(-40℃~82℃)   PP(13℃~66℃)

Product model

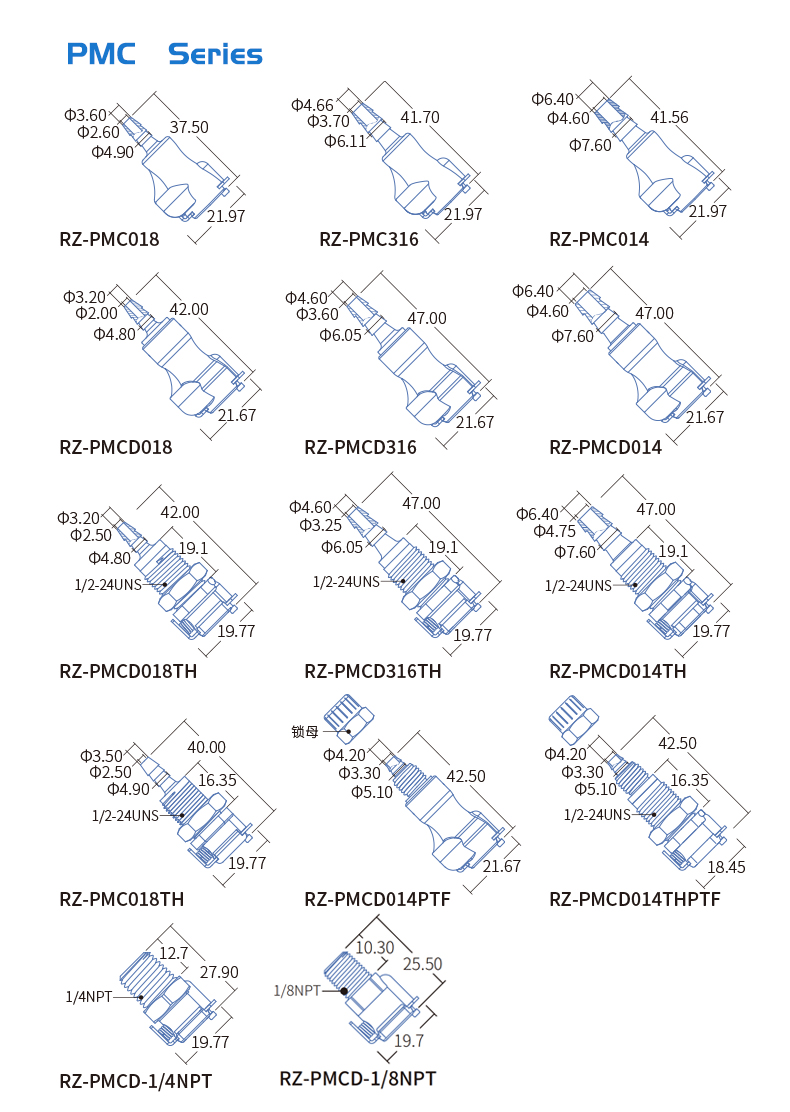

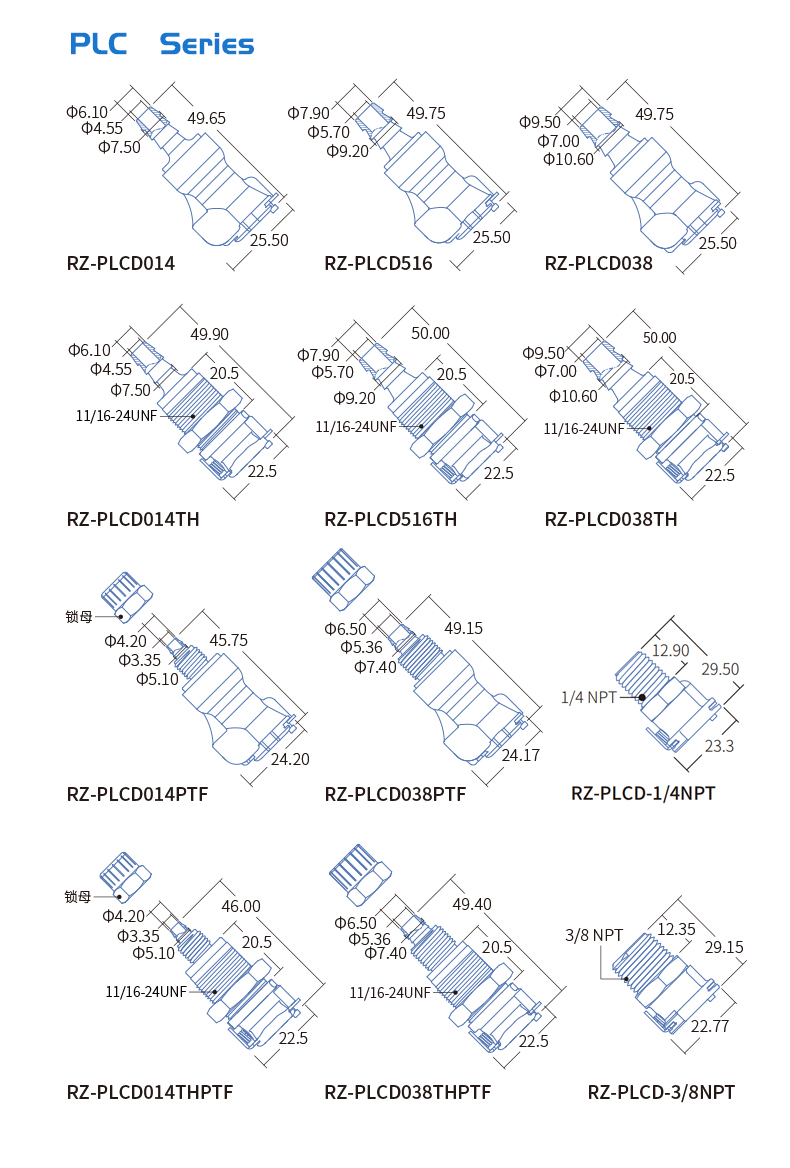

PMC/PLC/APC/SMC/NS Series

Product features

Easy to plug and unplug, easier to achieve disconnection and sealing of circulating media

Applicable Hose ID

3.0mm~9.5mm























Viedo of Quick Connect Fittings
