PEEK Luer Adapter

PEEK luer adapter is designed to adapt luer connectors to 10-32 UNF or 1/4-28 UNF threaded ports. The top advantage of PEEK luer adapter is that tubing will not rotate during tightening. It can withstand temperature range -100℃~+250℃ for a long time. PEEK luer adapter is suitable for standard 10-32UNF conical fittings or 1/4-28UNF flat bottom threaded fittings.


PEEK is a type of material with high mechanical strength, it is suitable for hydraulic systems that require repeated disassembly and relative high pressure in liquid chromatography and biological analysis instruments.

  • PEEK Luer Adapter
  • PEEK Luer Adapter
  • PEEK Luer Adapter
  • PEEK Luer Adapter
  • PEEK Luer Adapter
  • PEEK Luer Adapter
  • PEEK Luer Adapter
  • PEEK Luer Adapter
  • PEEK Luer Adapter
  • PEEK Luer Adapter
  • PEEK Luer Adapter
  • PEEK Luer Adapter
Send Mail
Share this product:

Features of PEEK Luer Adapter

  • Tubing will not rotate during tightening

  • Designed to adapt luer connectors to 10-32 UNF or 1/4-28 UNF threaded ports

  • Long-term working temperature range -100℃~+250℃

  • Suitable for standard 10-32UNF conical fittings or 1/4-28UNF flat bottom threaded fittings

  • High temperature resistance and corrosion resistance


Specifications of PEEK Luer Adapter


SKUModelThreadFlow Passage DiameterMaterial
1011130001RH-M-(1/4-28)N-K1/4-28UNF
PEEK natural
1011130002RH-M-(10-32)N-K10-32UNF
PEEK natural
1011130003RH-G-(1/4-28)N-K(0.8)1/4-28UNF0.8 mmPEEK natural
1011130004RH-G-(10-32)N-K(0.8)10-32UNF0.8 mmPEEK natural
1011130005RH-G-(1/4-28)N-K(1.2)1/4-28UNF1.2 mmPEEK natural
1011130006RH-G-(10-32)N-K(1.2)10-32UNF1.2 mmPEEK natural

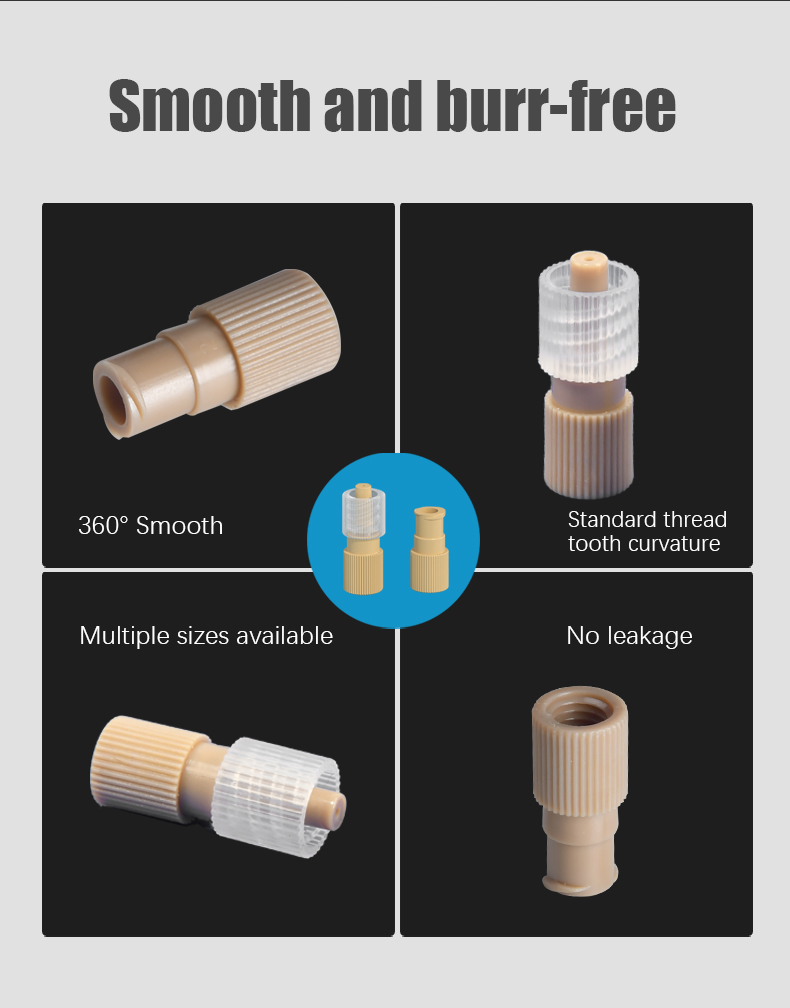

Details of PEEK Luer Adapter






Dimension (unit: mm) of PEEK Luer Adapter
