RZ35 Industrial High Flow Pump Head

RZ35 industrial high flow pump head is the newest member in the series of peristaltic pump head self-developed by Runze Fluid. RZ35 is easy to install, can automatically adapts to the tube device, and can meet different needs. PSU housing has good heat resistance, oxidation resistance and radiation resistance. And 304 SST rollers have high toughness, no rust and long service life. RZ35 is an industrial large flow pump head, the maximum flow can reach 14.28L/min (For reference only).

  • RZ35 Industrial High Flow Pump Head
  • RZ35 Industrial High Flow Pump Head
  • RZ35 Industrial High Flow Pump Head
  • RZ35 Industrial High Flow Pump Head
  • RZ35 Industrial High Flow Pump Head
  • RZ35 Industrial High Flow Pump Head
  • RZ35 Industrial High Flow Pump Head
  • RZ35 Industrial High Flow Pump Head
  • RZ35 Industrial High Flow Pump Head
  • RZ35 Industrial High Flow Pump Head
  • RZ35 Industrial High Flow Pump Head
  • RZ35 Industrial High Flow Pump Head
Send Mail
Share this product:

Specification of RZ35 Industrial High Flow Pump Head


Product nameRZ35 Industrial High Flow Pump Head
Model No.RZ35-3H-U
Housing materiaPSU
Roller material304 SST
Rollers3 rollers
Speed100rpm-900rpm
Weight1.74KG
Suitable pump tube73#、82# Rubber tube/ Silicone tube
Pump tubing water pressure 0.2Mpa


Fitting Peristaltic Tubing of RZ35 Industrial High Flow Pump Head



Material

Features

Service Life

Peristaltic Dosing Pump

Silicone

Food grade, High flexibility         Temp. range -4℃ - +180℃       For non-corrosive liquid

≥200h

Peristaltic Dosing Pump

Pharmed BPT

Saint-Gobain, FDA standard     Temp. range -51℃- +132℃           Anti weak acid and alkali

≥1000h


1. Tubing life measured by pumping pure water under continuous working at the room temperature 20℃ and no extra pressure until it cracks

2. Tubing life vary from different medium, motor speed, working environment, the lower motor speed and mild fluids help to extend the service life of tubing

3. Please replace new pump tube regularly to achieve higher precision constant liquid transfer


RZ35 Industrial High Flow Pump Head


Dimension (unit: mm)

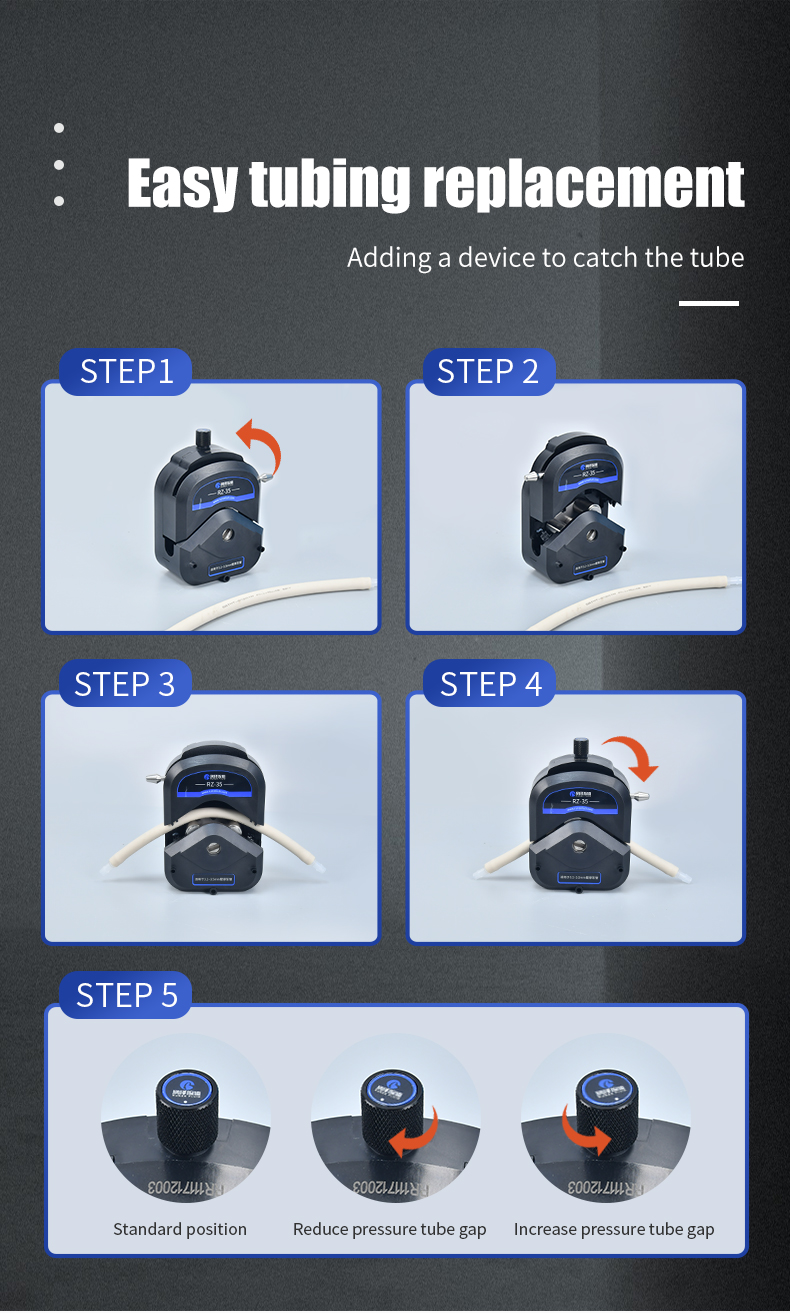

Installation Steps of RZ35 Industrial High Flow Pump Head
